6500
ObsoletePomona Electronics
OSCOPE PROBE X1/X10 100MHZ 1/10M
6500
ObsoletePomona Electronics
OSCOPE PROBE X1/X10 100MHZ 1/10M
Description
General part information
6500
1:1, 10:1 Modular Passive 100MHz (Scope); 30MHz, 250MHz (Probes) 47.244" (1200.00mm) Black Oscilloscope Probe Test Lead 1M, 10M Input Resistance CAT II 100V, CAT II 300V
Technical Specifications
Parameters and characteristics for this part
| Specification | 6500 |
|---|---|
| Attenuation Value | 10 :1, 1 :1 |
| Attenuation Value | 10:1, 1:1 |
| Bandwidth | 30 MHz |
| Bandwidth (Probes) | 250 MHz |
| Bandwidth (Scope) | 100 MHz |
| Cable Length | 47.244 in |
| Capacitance - Input (Option 1) | 80 pF |
| Capacitance - Input (Option 2) | 13 pF |
| Color | Black |

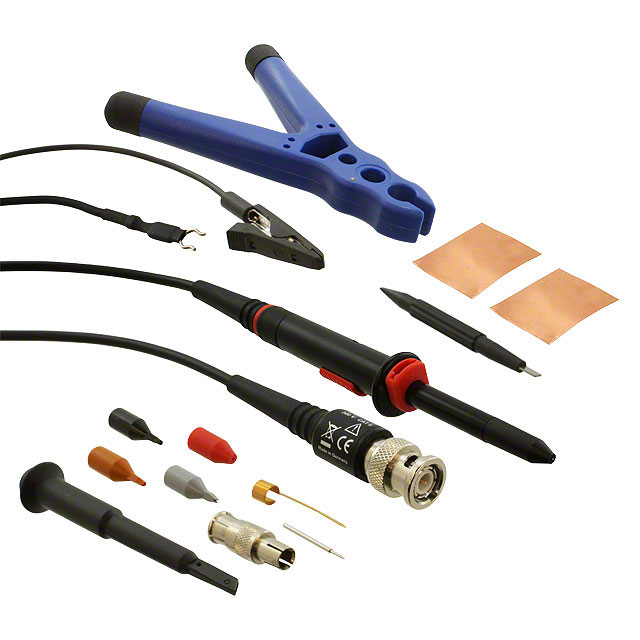

| Includes | Ground Lead, Sprung Hook, Adjusting Tool, Adapters (BNC, Ground, IC Tip), Tips (2), Probe Handle, Tip Cover |
| Resistance - Input (Value 1) | 1 MOhm |
| Resistance - Input (Value 2) | 10 MOhm |
| Type | Modular Passive |
| Voltage - Max (CAT II) | 300 V, 100 V |
| Voltage - Max Category | CAT II |
