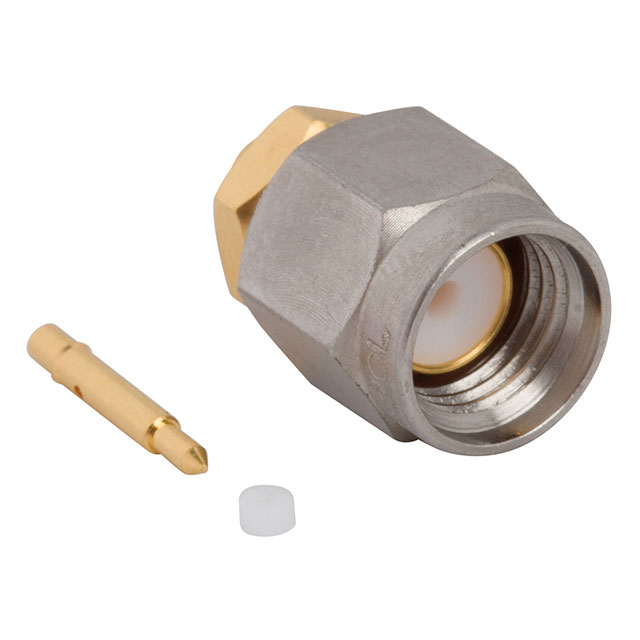

Specification	901-9201-2ASF-T

Body Finish	Passivated, Gold
Body Material	Stainless Steel
Cable Group	RG-405
Cable Group Diameter (Default)	0.085 in
Cable Group Diameter (Semi Rigid)	0.086 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold, Silver
Impedance	50 Ohm
Includes	Insulator, Connector, Contact
Includes Total Count	3 pcs
Ingress Protection	Weatherproof
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

901-92 Series

Part	Adapter Type	Mounting Type	Convert From (Adapter End)	Frequency - Max	Impedance	Center Gender	Conversion Type	Center Contact Plating	Adapter Series	Style	Fastening Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Body Material	Mating Cycles	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Center Contact Material	Cable Group Diameter (Default)	Cable Group	Cable Group Diameter (Semi Rigid)	Shield Termination	Number of Ports	Contact Termination	Housing Color	Connector Style	Mounting Feature	Connector Type	Includes	Includes Total Count	Features
McGill Microwave Systems 901-9218	Plug to Plug	Free Hanging (In-Line)	Male Pin SMA Plug	12.4 GHz	50 Ohm	Male	Same Series	Gold	SMA to SMA	Straight	Threaded	SMA Plug	Male Pin	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper
McGill Microwave Systems 901-9210-2		Panel Mount		12.4 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	0.085 in	RG-405	0.086 in	Solder	1	Solder	Gold	SMA	Bulkhead Front Side Nut	Female Socket Jack	Connector Contact Ferrule Gasket Lockwasher Nut	6 pcs
McGill Microwave Systems 901-9217	Jack to Jack	Free Hanging (In-Line)	Female Socket SMA Jack	12.4 GHz	50 Ohm	Female	Same Series	Gold	SMA to SMA	Straight	Threaded	SMA Jack	Female Socket	Stainless Steel		Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper
McGill Microwave Systems 901-9218-SF	Plug to Plug	Free Hanging (In-Line)	Male Pin SMA Plug	12.4 GHz	50 Ohm	Male	Same Series	Gold	SMA to SMA	Straight	Threaded	SMA Plug	Male Pin	Stainless Steel	500 cycles		-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper
McGill Microwave Systems 901-9221-2A		Free Hanging (In-Line) Right Angle		18 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	0.085 in	RG-405	0.086 in	Solder	1	Solder	Gold	SMA		Male Pin Plug
McGill Microwave Systems 901-9215-3CCSF		Panel Mount		18 GHz	50 Ohm			Gold			Threaded			Stainless Steel	100 cycles		-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper				Solder	1	Solder Tab	Silver	SMA	Flange	Female Socket Jack
McGill Microwave Systems 901-9221-1A		Free Hanging (In-Line) Right Angle		18 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper		RG-402	0.141 in	Solder	1	Solder	Gold	SMA		Male Pin Plug
McGill Microwave Systems 901-9220		Panel Mount		18 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper				Solder	1	Solder	Gold	SMA	Bulkhead Front or Rear Side Nut	Female Socket Recepture	Connector Lockwasher Nut	3 pcs	Extended Insulation
McGill Microwave Systems 901-9214-CCSF		Panel Mount		12.4 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles		-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper				Solder	1	Solder	Silver	SMA	Flange	Male Pin Plug			Extended Insulation
McGill Microwave Systems 901-9214-CC		Panel Mount		12.4 GHz	50 Ohm			Gold			Threaded			Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper				Solder	1	Solder	Gold	SMA	Flange	Male Pin Plug			Extended Insulation
