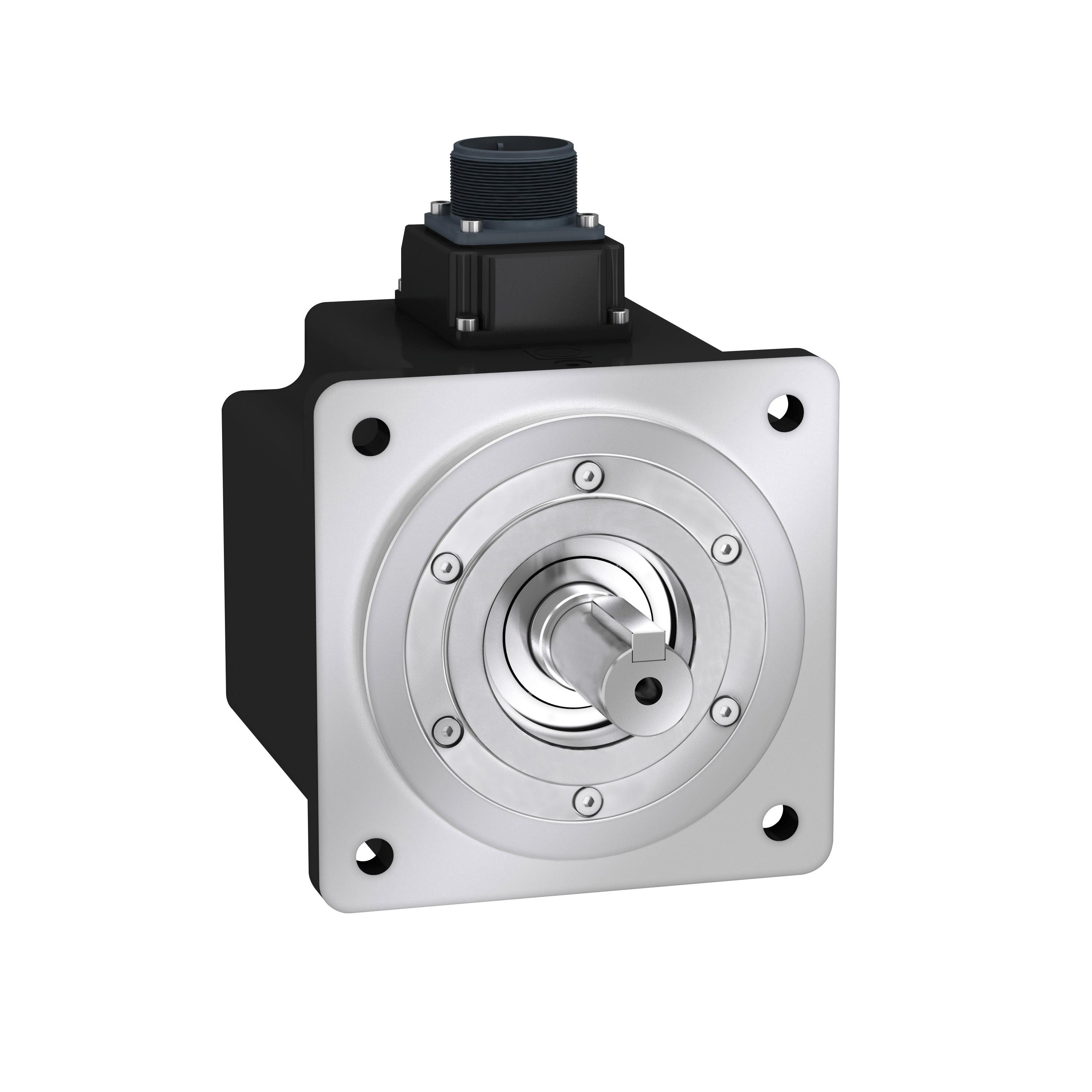

BCH2MM0811CA6C
ActiveSCHNEIDER ELECTRIC
130MM, 850W, IP54, W/ KEY, MIL C
BCH2MM0811CA6C
ActiveSCHNEIDER ELECTRIC
130MM, 850W, IP54, W/ KEY, MIL C
Description
General part information
BCH2MM0811CA6C
AC Motor Servomotor 3000 RPM 850W Absolute 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BCH2MM0811CA6C |
|---|---|
| Diameter - Shaft | 0.87 in |
| Encoder Type | Absolute |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 2.17 in |
| Mounting Hole Spacing | 4.33 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 850 W |
| RPM | 3000 RPM |
| Size / Dimension Length | 5.12 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 5.12 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 5390 mNm |
| Torque - Rated (oz-in) | 763.3 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
