4-2324584-0
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS HSG,REC,PANEL MOUNT,DUALROW,EP2.5
4-2324584-0
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS HSG,REC,PANEL MOUNT,DUALROW,EP2.5
Description
General part information
4-2324584-0

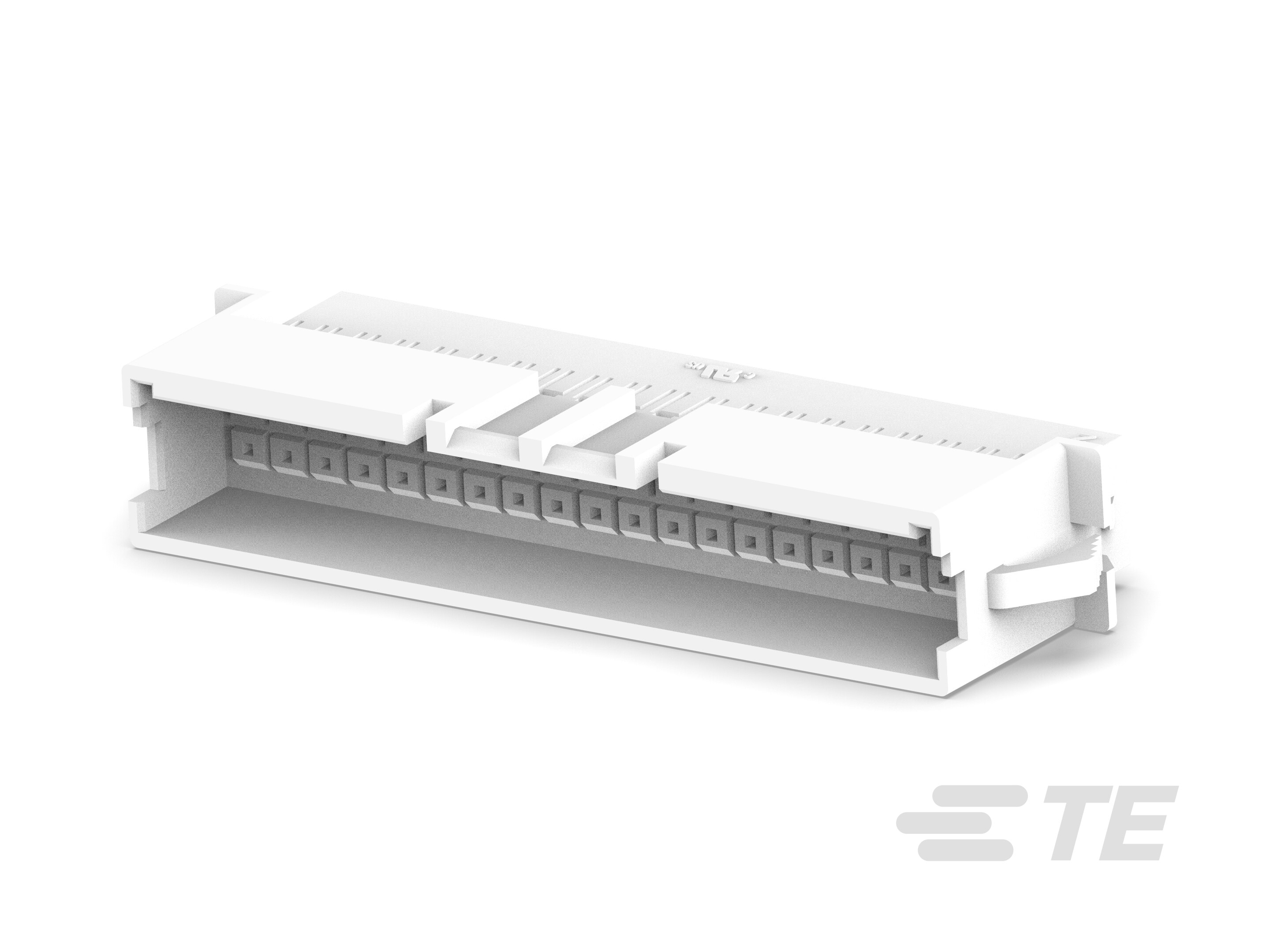

Housing, Receptacle, Wire-to-Wire, 40 Position, 2.5 mm [.098 in] Centerline, Crimp, 2 Row, White, Wire & Cable, Power & Signal, Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-2324584-0 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.098 in |
| Row Spacing | 0.098 in |
