5-2188225-6
ActiveTE Connectivity AMP Connectors

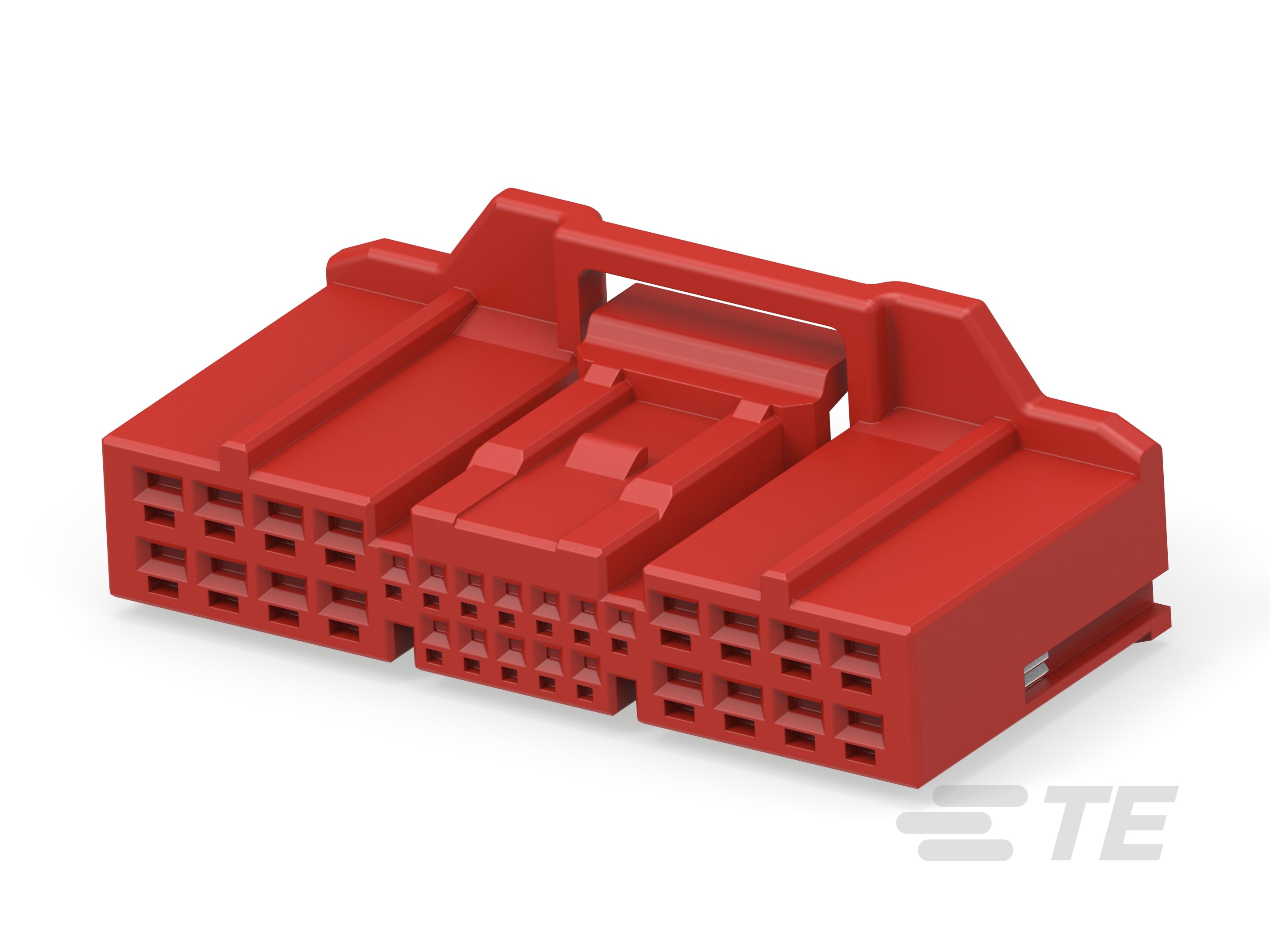

020/060 28P PLUG ASSY(CODE C2)
5-2188225-6
ActiveTE Connectivity AMP Connectors
020/060 28P PLUG ASSY(CODE C2)
Description
General part information
5-2188225-6
28 Position Housing, Housing for Female Terminals, Wire-to-Board, 2 mm / 3.2 mm [.07 in / .12 in] Centerline, Red, Wire & Cable, Nano MQS
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2188225-6 |
|---|---|
| Color | Red |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
