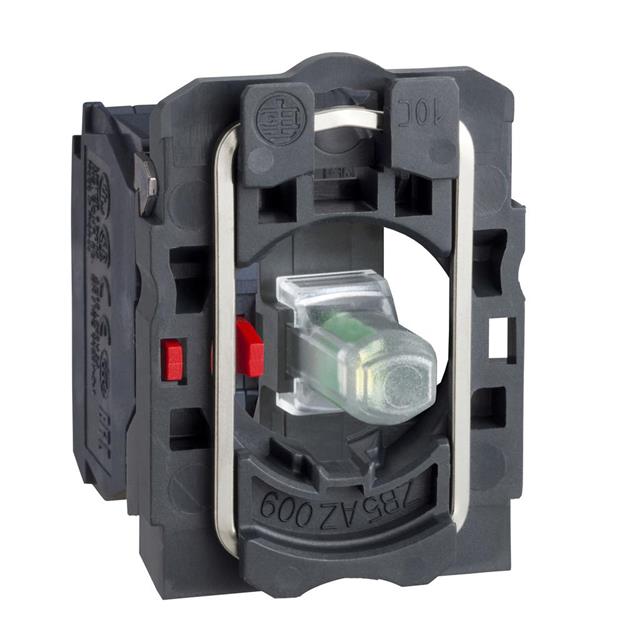

Specification	ZB5AW0B52

Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NC
Color	Orange
Color - Actuator/Cap	Orange
Current Rating	550 mA, 6 A
Electrical Life (Cycles)	1000000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	24 V
Mechanical Life (Cycles)	5000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Switch Function	Off-On
Termination Style	Screw Terminal
Type	Standard, Illuminated
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
