199D107X9003D2V1
ActiveVishay Dale
CAP TANT 100UF 10% 3V RADIAL
199D107X9003D2V1
ActiveVishay Dale
CAP TANT 100UF 10% 3V RADIAL
Description
General part information
199D107X9003D2V1

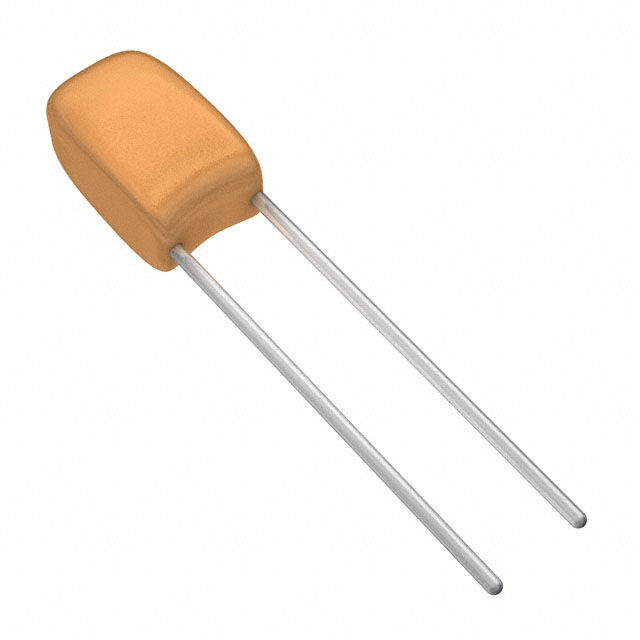

100 µF Conformal Coated Tantalum Capacitors 3 V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 199D107X9003D2V1 |
|---|---|
| Capacitance | 100 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.4 in |
| Lead Spacing | 0.1 in |
| Lifetime | 1000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Diameter | 0.236 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 3 VDC |
