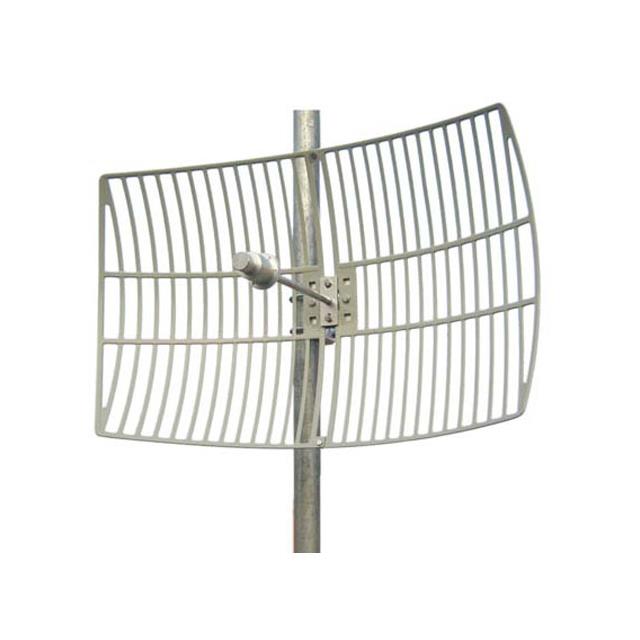

HG5827EG
ObsoletePasternack
ANTGRID 5.8GHZ 27DBI
HG5827EG
ObsoletePasternack
ANTGRID 5.8GHZ 27DBI
Description
General part information
HG5827EG
RF ANTENNA ISM, WLAN Parabolic Grid N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG5827EG |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | WLAN, ISM |
| Frequency (Center/Band) | 5.787 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 5.725 GHz |
| Gain | 27 dBi |
| Height (Max) | 23.62 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination | N Type Female |
| VSWR | 1.5 |
