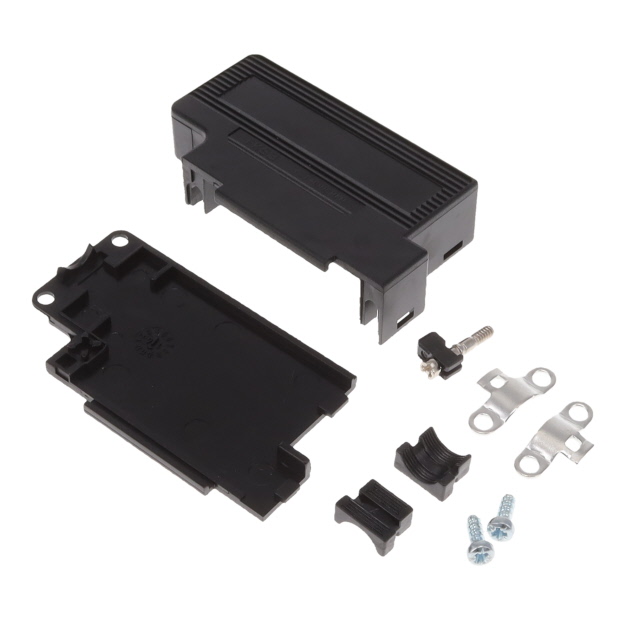

Specification	1731110462

Accessory Type	Two Piece Backshell
Cable Exit Angle	90 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	25pos, HD44pos
Compatible Shell Size	B
Features	Mating Screws
Hardware	Cable Clamp, Strain Relief, Assembly Hardware
Material	Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Number of Positions	25
Primary Material	Plastic
Shielding	Unshielded

173111 Series

FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with M2.5 Threaded Insert

...

Part	Material	Number of Positions	Cable Exit Angle	Plating	Compatible Shell Size	Cable Type	Accessory Type	Hardware	Primary Material	Compatible D-Sub Size	Features	Shielding	Color
Molex 1731110295
Molex 1731110368	Zinc Die Cast	25	45 °	Nickel	B	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Metal	25pos HD44pos	Mating Screws 4-40	Shielded	Silver
Molex 1731110473
Molex 1731110402
Molex 1731110437
Molex 1731110133	Acrylonitrile Butadiene Styrene (ABS)	15	180 °	Nickel	A	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Plastic	15pos HD26pos	Mating Screws 4-40	Shielded	Black
Molex 1731110783
Molex 1731110777
Molex 1731110313	Zinc Die Cast	9	90 °	Nickel	E	Round	Two Piece Backshell	Assembly Hardware Strain Relief	Metal	9pos HD15pos	Mating Screws 4-40	Shielded	Silver
Molex 1731110305	Zinc Die Cast	9	180 °	Nickel	E	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Metal	9pos HD15pos	Mating Screws 4-40	Shielded	Silver
