Description
General part information

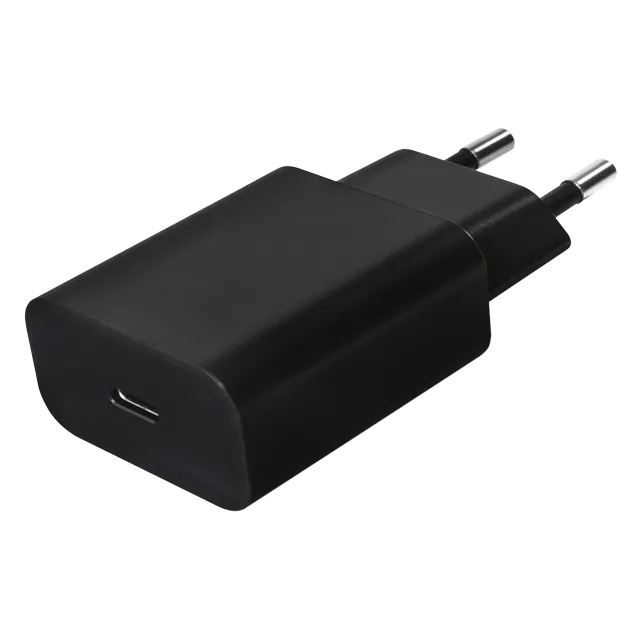

SWI20C-T-E
5V, 9V, 12V 20 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SWI20C-T-E |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, LPS |
| Current - Output (Max) Options | 1.66A, 3A, 2.22A |
| Efficiency | 86 % |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| No Load Power Consumption | 75 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB C Receptacle |
| Power (Watts) | 20 W |
| Region Utilized | Europe |
| Size / Dimension Height | 0.87 in |
| Size / Dimension Length | 3.17 in |
| Size / Dimension Width | 1.47 in |
| Standard Number | 62368-1 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5 VDC, 9 V, 12 V |
