2313698
ActivePhoenix Contact

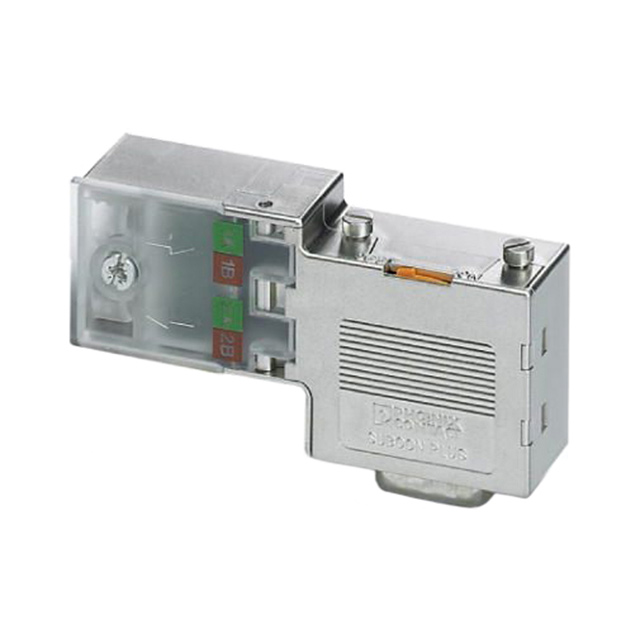

CONN D-SUB PLUG 9POS TERM BLK
2313698
ActivePhoenix Contact
CONN D-SUB PLUG 9POS TERM BLK
Description
General part information
2313698
9 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 2313698 |
|---|---|
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Type | Signal |
| Current Rating | 1 A |
| Dielectric Material | Acrylonitrile Butadiene Styrene (ABS), Metal Plated |
| Features | Shielded |
| Flange Feature | Cable Side, Male Jackscrew (4-40) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Shell Size | 1 |
| Termination | Terminal Block |
| Voltage Rating | 60 V |
