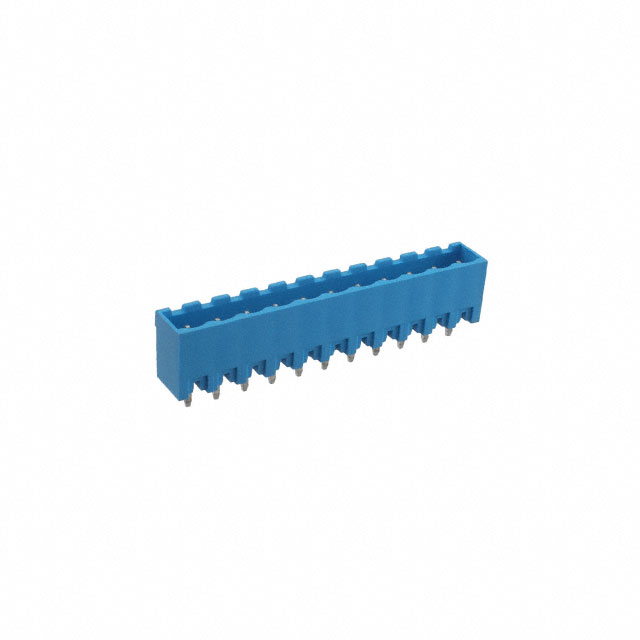

Specification	TBP01R2-508-11BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Current - IEC	20 A
Current - UL	16 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.472 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	11
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - IEC	320 V
Voltage - UL	300 V

TBP01R2 Series

Part	Voltage - IEC	Pitch	Mounting Type	Header Orientation	Contact Tail Length	Positions Per Level	Contact Material	Type	Contact Mating Finish	Number of Levels	Termination Style	Color	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Insulation Height	Voltage - UL	Current - IEC	Number of Positions	Current - UL	Material Flammability Rating	Features
Same Sky (Formerly CUI Devices) TBP01R2-508-16BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	16	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	16	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2W-508-03BE	320 V	5.08 mm	Through Hole	Vertical		3		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C			300 V	20 A	3	16 A		Mating Flange
Same Sky (Formerly CUI Devices) TBP01R2-508-10BE	320 V	5.08 mm	Through Hole	Vertical		10		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C			300 V	20 A	10	16 A
Same Sky (Formerly CUI Devices) TBP01R2-508-07BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	7	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	7	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2-508-18BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	18	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	18	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2-508-05BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	5	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	5	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2W-508-04BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	4	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	4	16 A	UL94 V-0	Mating Flange
Same Sky (Formerly CUI Devices) TBP01R2-508-08BE	320 V	5.08 mm	Through Hole	Vertical		8		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C			300 V	20 A	8	16 A
Same Sky (Formerly CUI Devices) TBP01R2W-508-06BE	320 V	5.08 mm	Through Hole	Vertical	0.157 in	6	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C	Nylon 6/6 PA66 Polyamide	0.472 in	300 V	20 A	6	16 A	UL94 V-0	Mating Flange
Same Sky (Formerly CUI Devices) TBP01R2W-508-05BE	320 V	5.08 mm	Through Hole	Vertical		5		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 °C	105 °C			300 V	20 A	5	16 A		Mating Flange
