Description
General part information

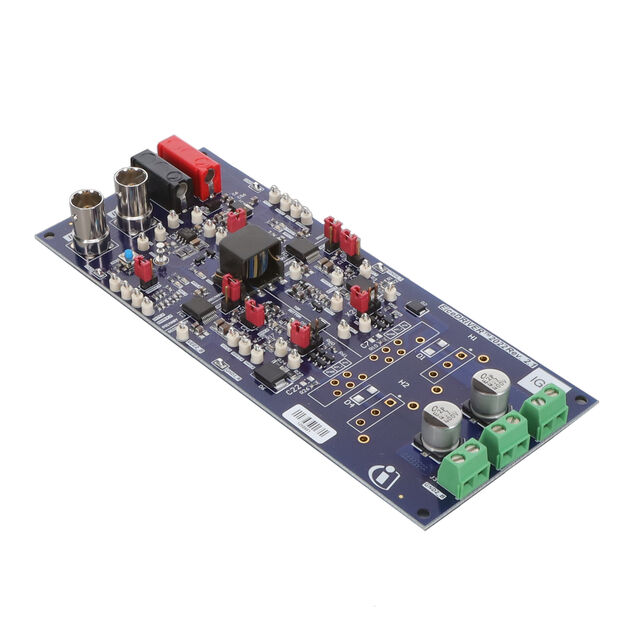

1EDI302XASEVALBOARDTOBO1
The eval board has been designed to ease the performance evaluation of EiceDRIVER™ 1EDI302xAS which is suitable for IGBT based applications. The EiceDRIVERTM1EDI302XAS evalboard contains the 1EDI3021AS and 1EDI3020AS for IGBT based applications. ASC on low side and ADC for temperature measurement on high side are available functionalities. One more evalboard option is available: The user manual navigates customers through all possible options and product combinations.In addition to the evaluation board: the online simulation of the EiceDRIVER TM 1EDI302xAS is ready for a truly seamless product evaluation.
Technical Specifications
Parameters and characteristics for this part
| Specification | 1EDI302XASEVALBOARDTOBO1 |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | Gate Driver |
| Primary Attributes | Isolated |
| Secondary Attributes | Test Points, On-Board LEDs |
| Type | Power Management |
| Utilized IC / Part | 1EDI302xAS |
