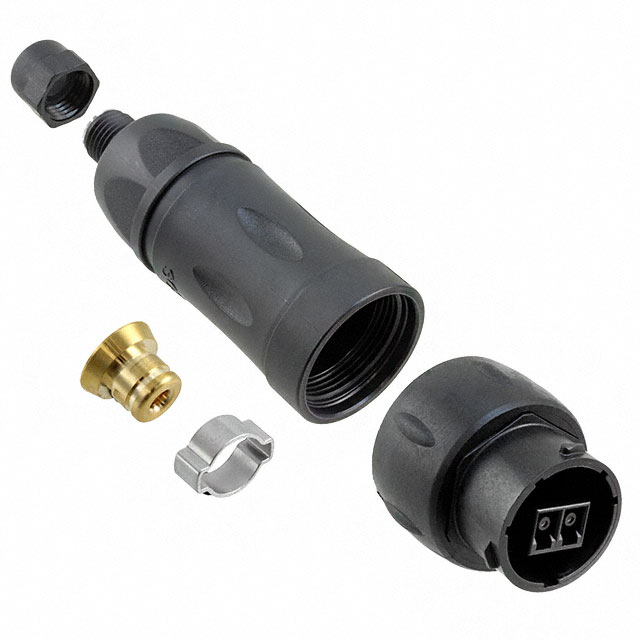

Specification	UTS1JC18LCN

Cable Diameter	6 mm
Connector Type	Receptacle
For Use With/Related Products	LC Connectors
Housing Color	Black
Housing Material	Plastic
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Simplex/Duplex	Duplex

UTS1J Series

Part	Insert Material	Features	Shielding	Housing Color	Number of Positions	Contact Type	Shell Material	Type	Contact Size	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Note	Material Flammability Rating	Mounting Type	Contact Shape	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Position Types	Shell Size - Insert	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UTS1JC104P	Nylon PA Polyamide	Backshell	Unshielded	Black	4	Crimp	Nylon Polyamide (PA)	For Male Pins	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	4 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
Amphenol Aerospace Operations UTS1JC103S	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	3 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC103W3P	Nylon PA Polyamide	Backshell	Unshielded	Black	6	Crimp	Nylon Polyamide (PA)	For Male Pins	16 20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular			N (Normal)	Receptacle Housing	-40 °C	105 °C		10-3W3
Amphenol Aerospace Operations UTS1JC147S	Nylon PA Polyamide	Backshell	Unshielded	Black	7	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	7 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC148S	Nylon PA Polyamide	Backshell	Unshielded	Black	8	Crimp	Nylon Polyamide (PA)	For Female Sockets	12 16	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	8 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
Amphenol Aerospace Operations UTS1JC142G1P	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Male Pins	8	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	2 mm	14 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE Power
Amphenol Aerospace Operations UTS1JC1832S	Nylon PA Polyamide	Backshell	Unshielded	Black	32	Crimp	Nylon Polyamide (PA)	For Female Sockets	20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular			N (Normal)	Receptacle Housing	-40 °C	105 °C			32	18
Amphenol Aerospace Operations UTS1JC124S	Nylon PA Polyamide	Backshell	Unshielded	Black	4	Crimp	Nylon Polyamide (PA)	For Female Sockets	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	4 mm	12 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC103P	Nylon PA Polyamide	Backshell	Unshielded	Black	3	Crimp	Nylon Polyamide (PA)	For Male Pins	16 S	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	3 mm	10 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C	PE
Amphenol Aerospace Operations UTS1JC1210S	Nylon PA Polyamide	Backshell	Unshielded	Black	10	Crimp	Nylon Polyamide (PA)	For Female Sockets	20	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bayonet Lock	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	Circular	10 mm	12 mm	N (Normal)	Receptacle Housing	-40 °C	105 °C
