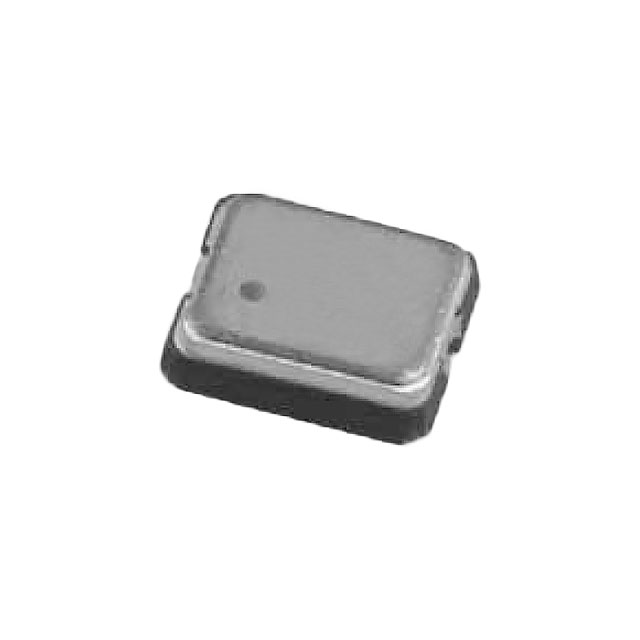

NZ2520SB-20.000000MHZ
ObsoleteNDK (NIHON DEMPA KOGYO CO., LTD)
XTAL OSC XO 20.0000MHZ CMOS SMD
NZ2520SB-20.000000MHZ
ObsoleteNDK (NIHON DEMPA KOGYO CO., LTD)
XTAL OSC XO 20.0000MHZ CMOS SMD
Description
General part information
NZ2520SB-20.000000MHZ
20 MHz XO (Standard) CMOS Oscillator 3V Standby (Power Down) 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | NZ2520SB-20.000000MHZ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 5 mA |
| Frequency | 20 MHz |
| Frequency Stability | 30 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3 V |
