Part	For Use With/Related Products	Accessory Type	Number of Positions	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Termination	Contact Finish Thickness	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing - Mating	Connector Type	Contact Material	Mounting Type	Number of Rows	Insulation Color	Insulation Material	Shrouding	Voltage Rating	Termination	Style	Pitch - Mating	Fastening Type	Contact Type	Contact Length - Mating	Number of Positions Loaded	Current Rating	Contact Shape	Contact Length - Post	Features
Hirose Electric Co Ltd HIF3-GPD40	HIF3 Series	Guide Plate	40
Hirose Electric Co Ltd HIF3-2428SCF				Gold	Socket	28 AWG	24 AWG	Crimp
Hirose Electric Co Ltd HIF3-GPD50	HIF3 Series	Guide Plate	50
Hirose Electric Co Ltd HIF3-2226SCFC				Gold	Socket	26 AWG	22 AWG	Crimp
Hirose Electric Co Ltd HIF3-20CV(72)	HIF3 Series	Backshell	20
Hirose Electric Co Ltd HIF3-2226SC				Gold	Socket	26 AWG	22 AWG	Crimp
Hirose Electric Co Ltd HIF3-2428SC				Gold	Socket	28 AWG	24 AWG	Crimp	8 µin
Hirose Electric Co Ltd HIF3-40P-2.54DS			40							UL94 V-0	-55 °C	85 °C	0.1 in	Header	Brass	Right Angle Through Hole	2	Black	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	200 VDC	Solder	Board Cable/Wire	0.1 in	Eject Hooks Latch Lock	Male Pin	0.236 in	All	1 A	Square	0.118 in	Mounting Flange
Hirose Electric Co Ltd HIF3-26CV(72)	HIF3 Series	Backshell	26
Hirose Electric Co Ltd HIF3-6P-2.54DS			6							UL94 V-0	-55 °C	85 °C	0.1 in	Header	Brass	Right Angle Through Hole	2	Black	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	200 VDC	Solder	Board Cable/Wire	0.1 in	Eject Hooks Latch Lock	Male Pin	0.236 in	All	1 A	Square	0.118 in	Mounting Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

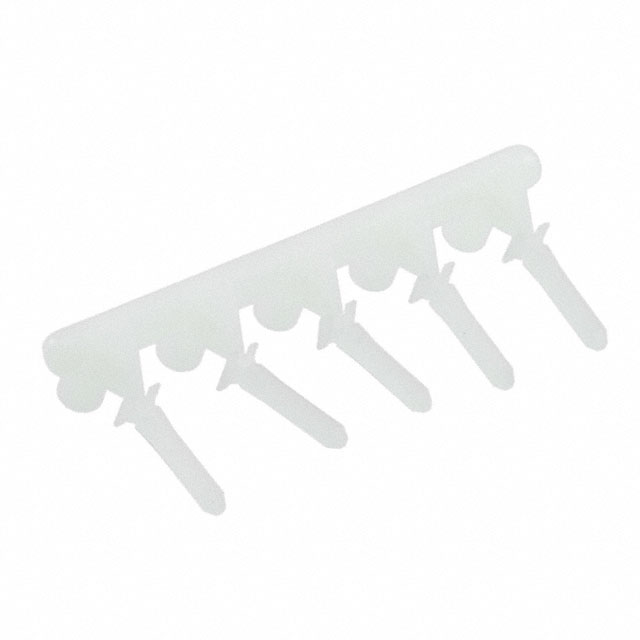

HIF3-GPIN(A) | Datasheet
