MCOT256064C1Y-GM
ActiveMidas Displays

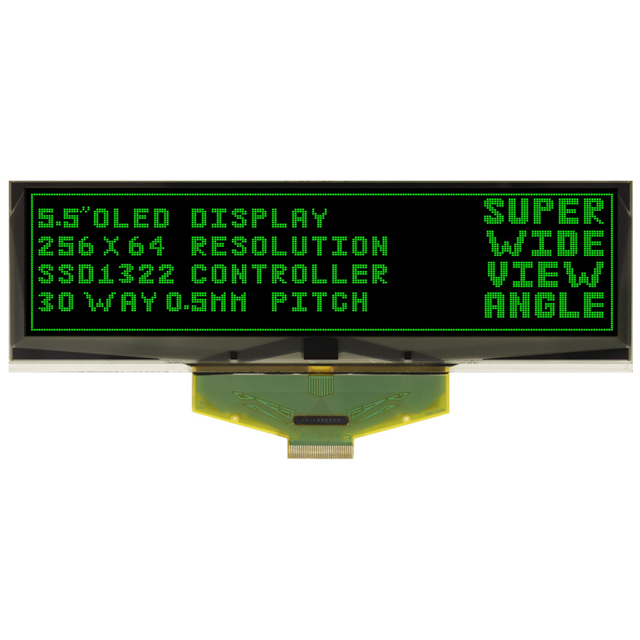

256 X 64 GRAPHIC TAB OLED, GREEN
MCOT256064C1Y-GM
ActiveMidas Displays
256 X 64 GRAPHIC TAB OLED, GREEN
Description
General part information
MCOT256064C1Y-GM
Graphic LCD Display Module Transmissive Green OLED - Passive Matrix Parallel, SPI 5.5" (139.70mm) 256 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | MCOT256064C1Y-GM |
|---|---|
| Background Color | Black |
| Backlight Color | Green |
| Backlight Type | LED |
| Controller Type | SSD1322 |
| Diagonal Screen Size | 5.5 in |
| Display Mode | Transmissive |
| Display Type | OLED - Passive Matrix |
| Dot Pitch Height | 0.35 mm |
| Dot Pitch Width | 0.53 mm |
| Dot Pixels (Horizontal) | 256 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.5 mm |
| Dot Size Width | 0.5 mm |
| Graphics Color | Green |
| Interface | Parallel, SPI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 35.89 mm |
| Viewing Area Width | 137.65 mm |
