B37872K2223K062
ObsoleteEPCOS - TDK Electronics
CAP CER 0.022UF 200V X7R 1206
B37872K2223K062
ObsoleteEPCOS - TDK Electronics
CAP CER 0.022UF 200V X7R 1206
Description
General part information
B37872K2223K062

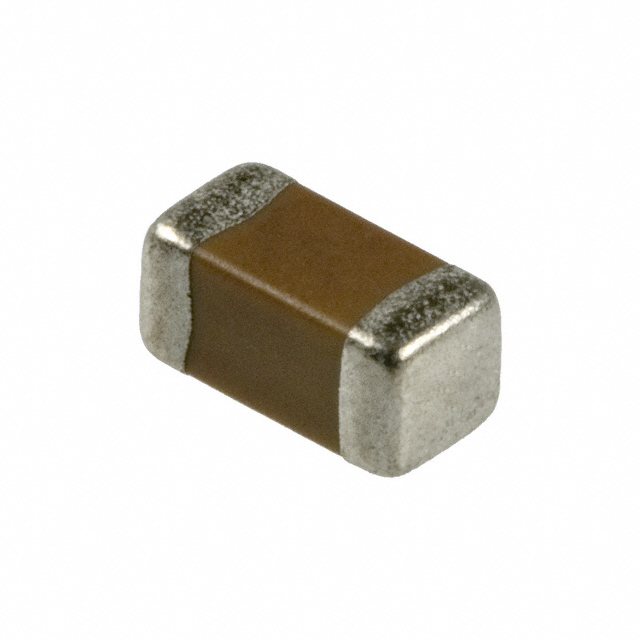

0.022 µF ±10% 200V Ceramic Capacitor X7R 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B37872K2223K062 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.022 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.047 in |
| Tolerance | 10 % |
| Voltage - Rated | 200 VDC |
