CTDAS0910AF-220M

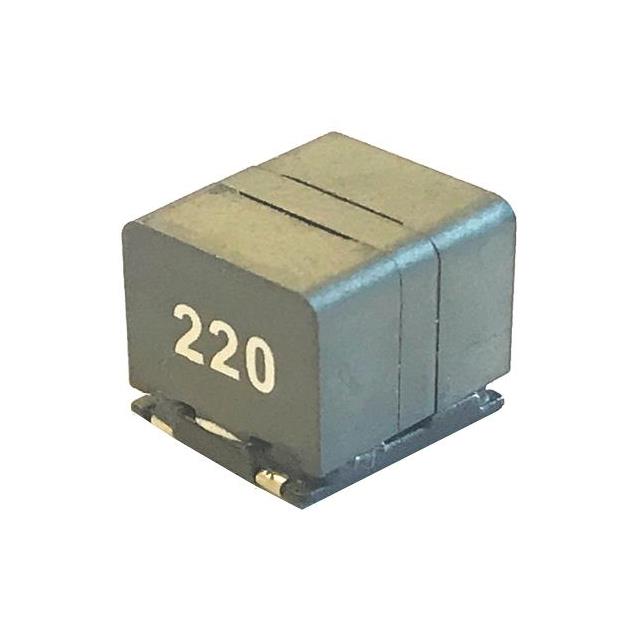

22 µH Shielded Inductor 3.5 A 45mOhm Max Horizontal, 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDAS0910AF-220M |
|---|---|
| Current - Saturation (Isat) | 3.3 A |
| Current Rating | 3.5 A |
| DC Resistance (DCR) (Max) | 45 mOhm |
| Height - Seated (Max) | 0.413 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Name | Horizontal |
| Package Pad Count | 4 |
| Pad Count | 4 PC Pad |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.354 in |
| Supplier Device Package - Orientation | Horizontal |
| Supplier Device Package - Pad Count | 4 PC, 4 PC Pad |
| Tolerance | 20 % |
