Description
General part information

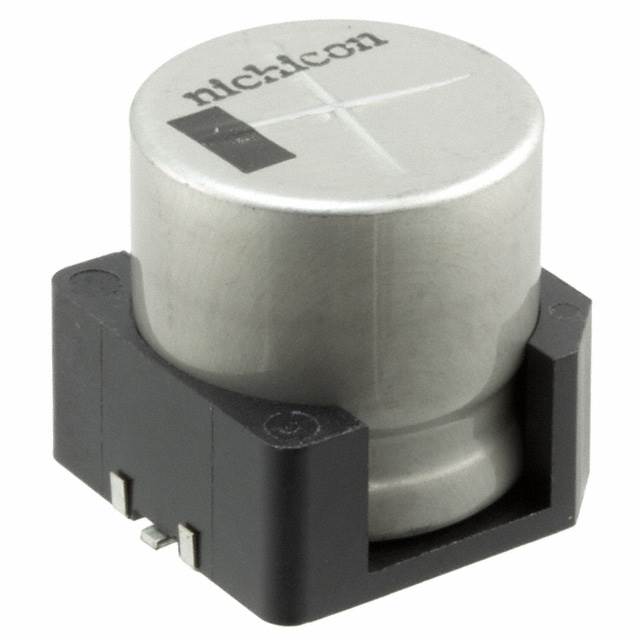

UUE1E681MNS6MS
680 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUE1E681MNS6MS |
|---|---|
| Applications | Automotive |
| Capacitance | 680 µF |
| Height - Seated (Max) | 0.886 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 1.2 A, 804 mA |
| Size / Dimension Diameter | 0.63 in |
| Surface Mount Land Length | 0.673 in |
| Surface Mount Land Width | 0.673 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
