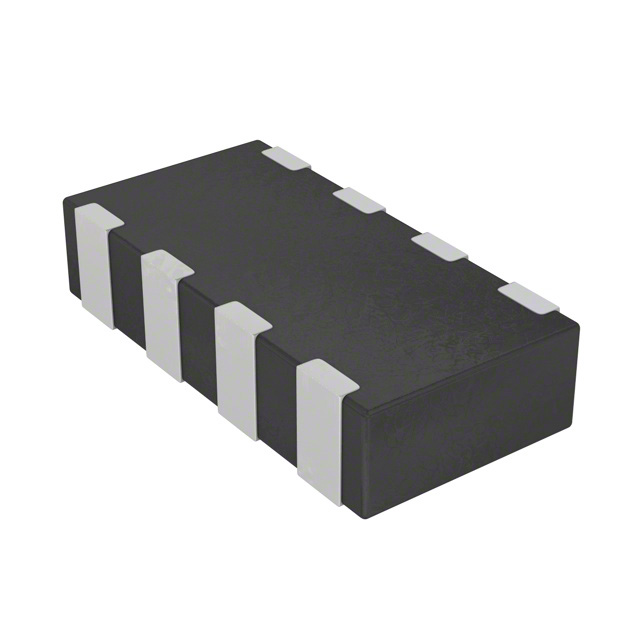

BK20104M601-T

BK20104M601-T

Obsolete
Taiyo Yuden

FERRITE BEAD 600 OHM 0804 4LN

Find alt
BK20104M601-T

BK20104M601-T

Obsolete
Taiyo Yuden

FERRITE BEAD 600 OHM 0804 4LN

Find alt

Description

General part information

BK20104M601-T

600 Ohms @ 100 MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 100mA 700mOhm

Technical Specifications

Parameters and characteristics for this part

SpecificationBK20104M601-T
Current Rating (Max)100 mA
DC Resistance (DCR) (Max)700 mOhm
Height (Max)0.02 in
Impedance600 Ohms
Mounting TypeSurface Mount
Number of Lines4
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package Name0804
Pad Count8 PC Pad
Size / Dimension Length0.079 in
Size / Dimension Width0.039 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
