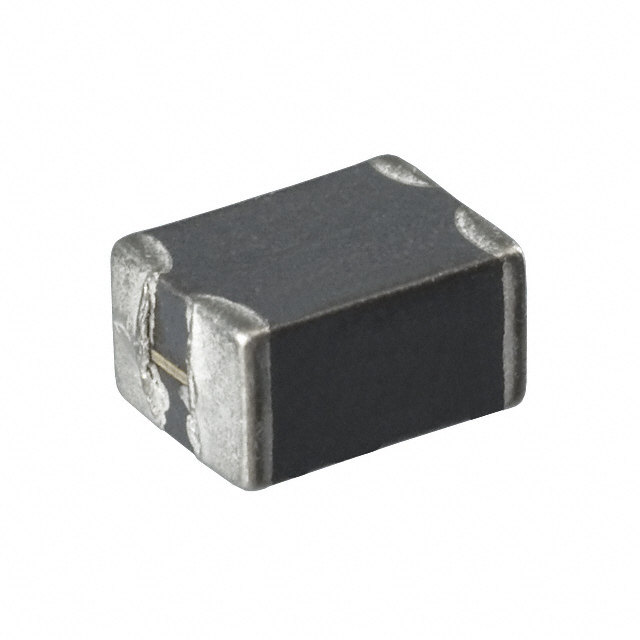

CM1812R600R-00
ObsoleteLaird Technologies EMI
CMC 5A 2LN 60 OHM SMD
CM1812R600R-00
ObsoleteLaird Technologies EMI
CMC 5A 2LN 60 OHM SMD
Description
General part information
CM1812R600R-00
2 Line Common Mode Choke Surface Mount 60 Ohms @ 100 MHz 5A DCR 5mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM1812R600R-00 |
|---|---|
| Current Rating (Max) | 5 A |
| DC Resistance (DCR) (Max) | 5 mOhm |
| Height (Max) | 0.103 in |
| Impedance | 60 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Package Leads | 4 Leads |
| Package Name | 1812 |
| Size / Dimension Length | 0.18 in |
| Size / Dimension Width | 0.12 in |
