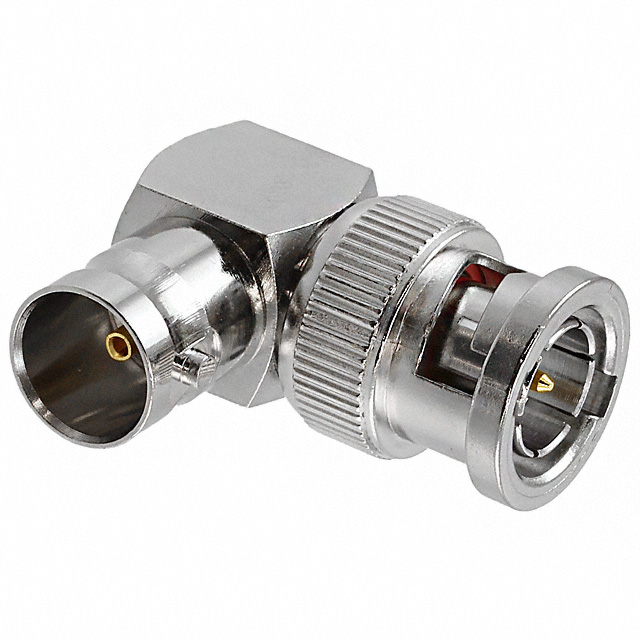

Specification	112454

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze, Brass
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	BNC Plug
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max	2 GHz
Impedance	75 Ohm
Mounting Type	Right Angle, Free Hanging (In-Line)
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	Right Angle

1124 Series

Part	Number of Ports	Center Contact Material	Mounting Feature	Connector Style	Shield Termination	Impedance	Mounting Type	Frequency - Max	Features	Connector Type	Housing Color	Fastening Type	Contact Termination	Center Contact Plating	Dielectric Material	Insertion Loss	Voltage Rating	Body Material	Mating Cycles	Body Finish	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Adapter Type	Conversion Type	Convert From (Adapter End)	Center Gender	Adapter Series	Style	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Convert To (Adapter End) Count	Convert To (Adapter End)
McGill Microwave Systems 112408	1	Phosphor Bronze	Bulkhead	BNC	Solder	50 Ohm	Panel Mount Through Hole	4 GHz	Board Lock	Female Socket Jack	Silver White	Bayonet Lock	Solder	Gold	Polypropylene (PP)	0.2 dB	500 V	Zinc Die Cast	500 cycles	Nickel
McGill Microwave Systems 112438		Phosphor Bronze	Bulkhead			75 Ohm	Panel Mount	2 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass		Nickel	Female Socket	BNC Jack	Jack to Jack	Same Series	BNC Jack Female Socket	Female	BNC to BNC	Straight	-40 °C	85 °C	3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 112426	1	Phosphor Bronze	Bulkhead Rear Side Nut	BNC	Solder Tag	50 Ohm	Panel Mount	4 GHz	Extended Insulation	Female Socket Jack	Silver	Bayonet Lock	Solder Cup	Gold	Polyoxymethylene (POM) Acetal	0.2 dB	500 V	Brass	500 cycles	Nickel											4 pcs	Connector Lockwasher Nut Solder Tag
McGill Microwave Systems 112436		Phosphor Bronze	Bulkhead			75 Ohm	Panel Mount	2 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass		Nickel	Female Socket	BNC Jack	Jack to Jack	Same Series	BNC Jack Female Socket	Female	BNC to BNC	Straight	-40 °C	85 °C	4 pcs	Connector Gasket Lockwasher Nut
McGill Microwave Systems 112447		Brass				50 Ohm	Free Hanging (In-Line)	4 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass		Nickel	Male Pin	BNC Plug	Plug to Plug	Same Series	BNC Plug Male Pin	Male	BNC to BNC	Straight	-40 °C	85 °C
McGill Microwave Systems 112443		Phosphor Bronze	Bulkhead			50 Ohm	Panel Mount	4 GHz	Isolated			Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass		Nickel	Female Socket	BNC Jack	Jack to Jack	Same Series	BNC Jack Female Socket	Female	BNC to BNC	Straight	-40 °C	85 °C	3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 112451		Brass Phosphor Bronze				50 Ohm	Free Hanging (In-Line) Right Angle	4 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass	500 cycles	Nickel	Male Pin	BNC Plug	Plug to Jack	Same Series	BNC Jack Female Socket	Female Male	BNC to BNC	Right Angle	-40 °C	85 °C
McGill Microwave Systems 112462		Brass Phosphor Bronze				75 Ohm	Free Hanging (In-Line)	4 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Zinc Die Cast		Nickel			Plug to Jack	Same Series	BNC Plug Male Pin	Female Male	BNC to BNC Dual	T-Shape	-40 °C	85 °C			2 count	BNC Jack Female Socket
McGill Microwave Systems 112437		Phosphor Bronze	Bulkhead			50 Ohm	Panel Mount	4 GHz				Bayonet Lock		Gold	Polyoxymethylene (POM) Acetal			Brass		Nickel	Female Socket	BNC Jack	Jack to Jack	Same Series	BNC Jack Female Socket	Female	BNC to BNC	Straight	-40 °C	85 °C	3 pcs	Connector Lockwasher Nut
McGill Microwave Systems 112494	1	Phosphor Bronze	Bulkhead	BNC	Solder	75 Ohm	Panel Mount Right Angle Through Hole	4 GHz	Board Lock	Female Socket Jack	Silver	Bayonet Lock	Solder	Gold	Polypropylene (PP)		500 V	Zinc Die Cast	500 cycles	Nickel
