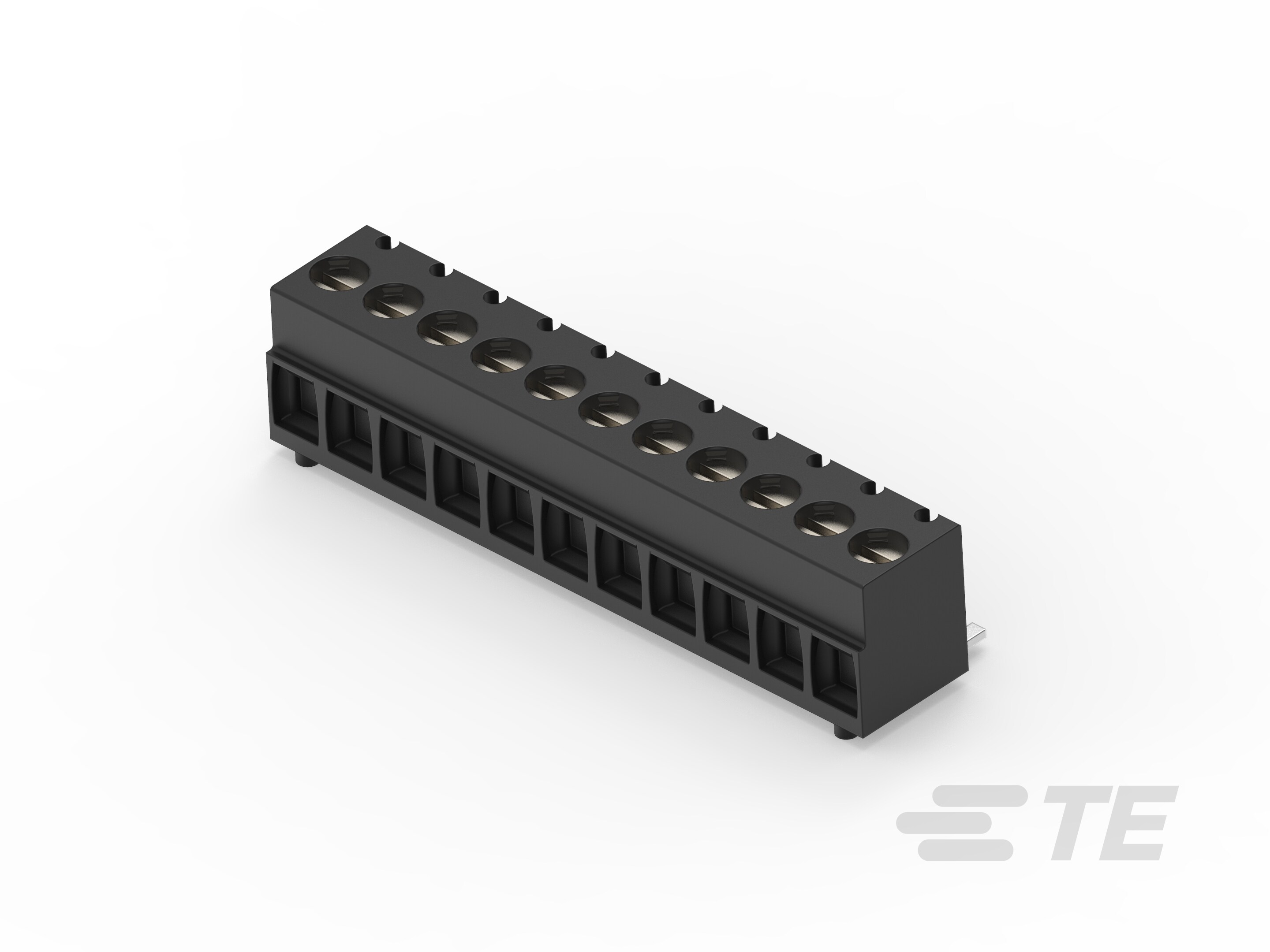

1-2383942-1
ActiveTE Connectivity AMP Connectors
CONN TERMINAL BLOCK 11 POS 3.5MM SOLDER ST SMD 12A/CONTACT T/R
1-2383942-1
ActiveTE Connectivity AMP Connectors
CONN TERMINAL BLOCK 11 POS 3.5MM SOLDER ST SMD 12A/CONTACT T/R
Description
General part information
1-2383942-1
11 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.13 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 16 AWG, .08 – 1.31 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2383942-1 |
|---|---|
| Color | Black |
| Current | 12 A |
| Features | Board Guide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 11 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
