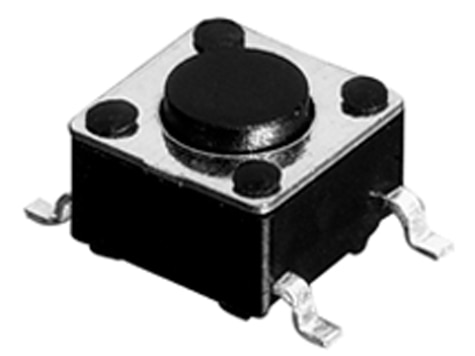

Specification	95C06A6GWT

Actuator Height off PCB (Vertical)	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Features	Tactile Feedback
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	520 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Outline Length	6.2 mm
Outline Width	6.2 mm
Switch Function	Off-Mom
Termination Style	Gull Wing

95C Series

Part	Actuator Material	Mechanical Life (Cycles)	Switch Travel	Switch Function	Actuator Type	Illumination	Actuator Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Outline Width	Outline Length	Actuator Height off PCB (Vertical)	Contact Rating (Current)	Circuit	Termination Style	Mounting Type	Operating Force	Features
Grayhill Inc. 95C12B3GWT	Nylon Polyamide (PA)	1000000 Cycles	0.35 mm	Off-Mom	Standard	Non-Illuminated	Top Actuated	70 °C	-25 °C	12 mm	12 mm	8.5 mm	0.05 A	SPST-NO	Gull Wing	Surface Mount	160 gf	Tactile Feedback
Grayhill Inc. 95C12B4GWRT	Nylon Polyamide (PA)	500000 Cycles	0.35 mm	Off-Mom	Standard	Non-Illuminated	Top Actuated	70 °C	-25 °C	12 mm	12 mm	8.5 mm	0.05 A	SPST-NO	Gull Wing	Surface Mount	260 gf	Tactile Feedback
