Description
General part information
PSQ-C1CU-RC1/8

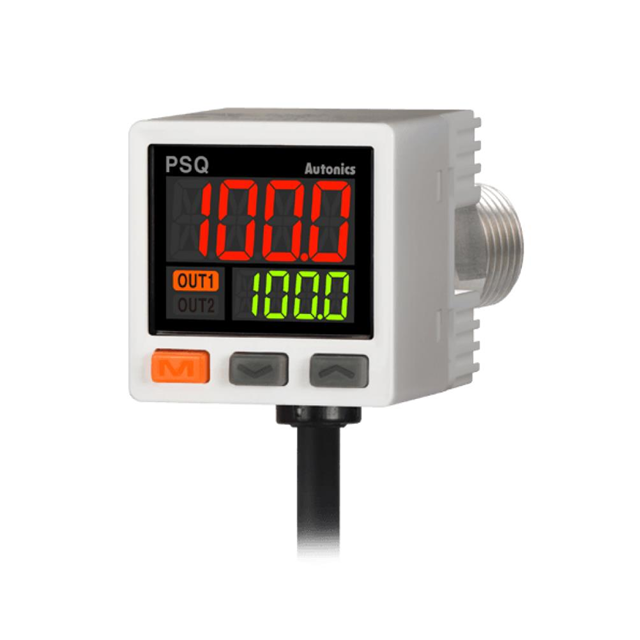

Pressure Sensor -0.01PSI ~ 145.04PSI (-0.1kPa ~ 1000kPa) Compound Male - 1/8" (3.18mm) RC 4 ~ 20 mA, 1V ~ 5V Module Box with Display
Technical Specifications
Parameters and characteristics for this part
| Specification | PSQ-C1CU-RC1/8 |
|---|---|
| Accuracy | 1 % |
| Maximum Pressure | 217.56 PSI |
| Operating Pressure (Max) | 145.04 PSI |
| Operating Pressure (Min) | -0.01 PSI |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 4 mA |
| Output Type | PNP - Open Collector, Voltage, NPN - Open Collector, Analog Current |
| Output Voltage Range 1 (Max) | 5 V |
| Output Voltage Range 1 (Min) | 1 VDC |
| Package / Case | Module Box with Display |
| Port Diameter | 0.125 " |
| Port Feature | RC |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Compound |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
