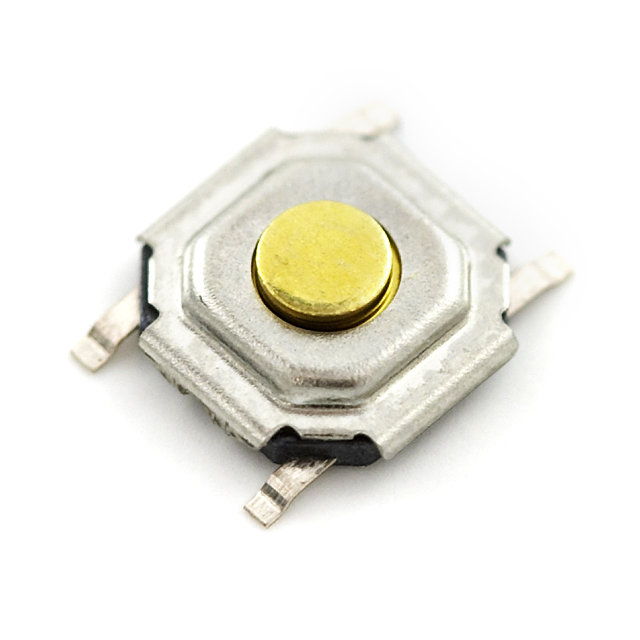

Specification	COM-08720

Actuator Height off PCB (Vertical)	1.6 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Surface Mount
Operating Force (Max)	250 gf
Operating Force (Min)	160 gf
Outline Length	5.2 mm
Outline Width	5.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

- Series

Part	Body Finish	Fastening Type	Mounting Type	Shield Termination	Body Material	Center Contact Plating	Connector Style	Housing Color	Frequency - Max	Impedance	Center Contact Material	Voltage Rating	Contact Termination	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Ports	Cable Type	Shielding	1st Connector Type	Length	2nd Connector Type	2nd Connector Mounting Type	Usage	Color	1st Connector Mounting Type	Illumination	Switch Function	Actuator Orientation	Termination Style	Actuator Type	Circuit	2nd Connector Gender	Outline Width	Outline Length	Switch Travel	Mechanical Life (Cycles)	Actuator Height off PCB (Vertical)	Operating Force	Illumination Type	Contact Rating (Current)
SparkFun WRL-09144	Gold	Snap-On	Surface Mount	Solder	Copper Alloy	Gold	Mini UHF	Gold	6000 MHz	50 Ohm	Copper Alloy	60 V	Solder	Male Pin Receptacle	-40 °C	85 °C	1
SparkFun CAB-14274																		Round	Unshielded	HDMI-A Male	3 ft	Mini HDMI-C Male	Free Hanging (In-Line)	High Definition Multimedia Interface	Red	Free Hanging (In-Line)
SparkFun COM-10791			Right Angle Through Hole																								Non-Illuminated	Off-Mom	Side Actuated	PC Pin	Rectangular Button	SPST-NO
SparkFun CAB-15796																		Round	Shielded	HDMI-A Male	3.3 ft	Micro HDMI-D	Free Hanging (In-Line)		Red	Free Hanging (In-Line)							Male
SparkFun DD-15326			Through Hole																								Non-Illuminated	Off-Mom	Top Actuated	PC Pin	Round Button	SPST-NO		11.5 mm	11.7 mm
SparkFun COM-10440			Through Hole												-10 °C	70 °C									Green		Illuminated	Off-Mom	Top Actuated	PC Pin	Round Button	SPST-NO		12 mm	12 mm	0.25 mm	100000 Cycles	6.5 mm	150 gf	LED	0.05 A
SparkFun COM-00097			Through Hole																								Non-Illuminated	Off-Mom	Top Actuated	PC Pin	Standard	SPST-NO
SparkFun COM-12993			Surface Mount																								Non-Illuminated	Off-Mom	Top Actuated	Gull Wing	Standard	SPST-NO		12 mm	12 mm	0.35 mm	200000 Cycles	8.5 mm	160 gf		0.05 A
SparkFun COM-10439			Through Hole												-10 °C	70 °C									White		Illuminated	Off-Mom	Top Actuated	PC Pin	Round Button	SPST-NO		12 mm	12 mm	0.25 mm	100000 Cycles	6.5 mm	150 gf	LED	0.05 A
SparkFun COM-10441			Through Hole												-10 °C	70 °C									Orange		Illuminated	Off-Mom	Top Actuated	PC Pin	Round Button	SPST-NO		12 mm	12 mm	0.25 mm	100000 Cycles	6.5 mm	150 gf	LED	0.05 A
