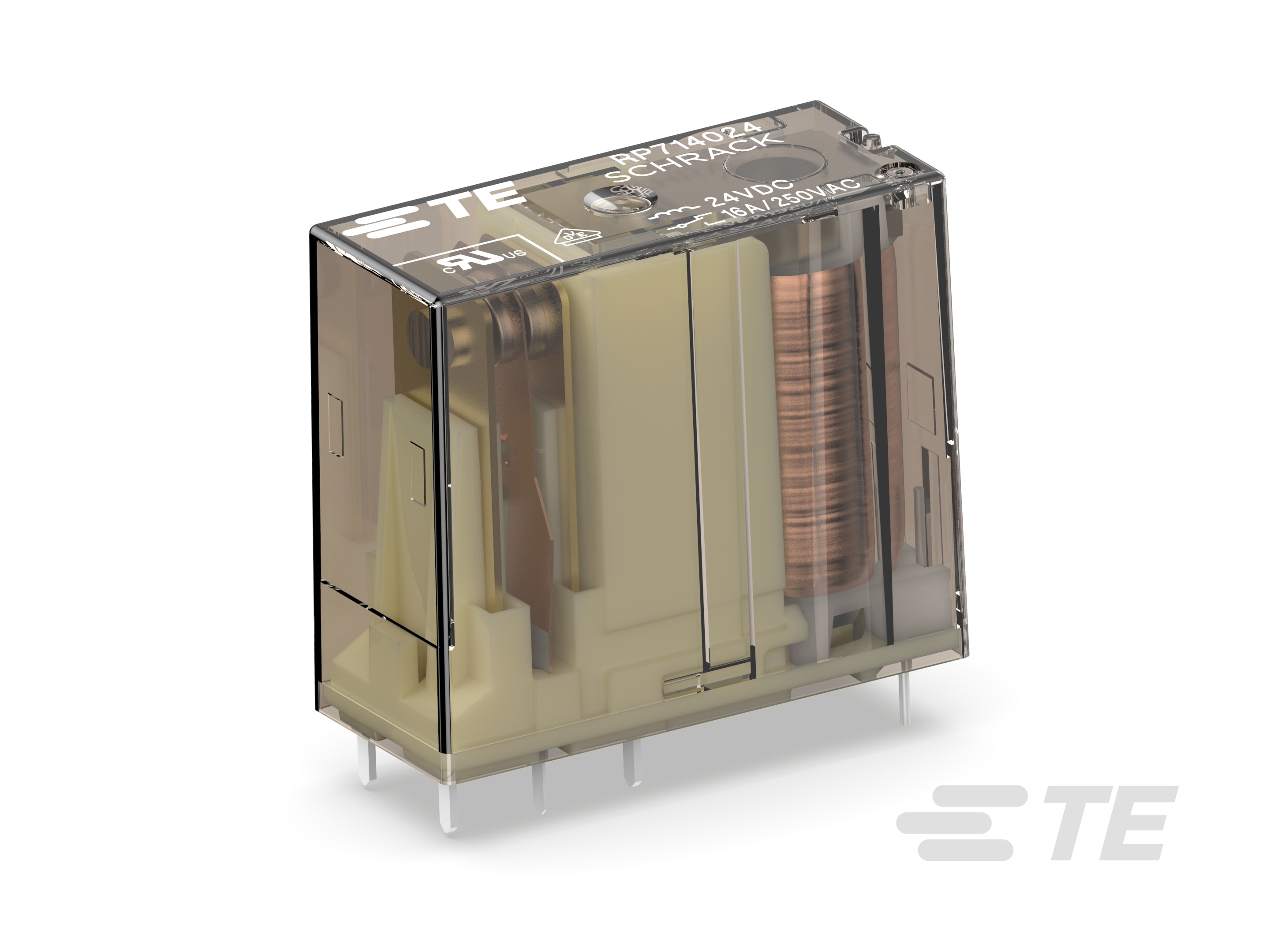

Specification	1415547-1

Approval Agency	VDE, cURus
Coil Current	24.4 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching (Apparent Power)	4000 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 V
Operate Time	8 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	2 ms
Seal Rating	Flux Protection, Sealed
Switching Voltage AC (Max)	400 VAC
Termination Style	PC Pin
