TERMINAL R PG 2 1/4-52267

52267

Active
TE Connectivity AMP Connectors

CONN RING CIRC 2AWG #1/4 CRIMP

Find alt
TERMINAL R PG 2 1/4-52267

52267

Active
TE Connectivity AMP Connectors

CONN RING CIRC 2AWG #1/4 CRIMP

Find alt

Description

General part information

52267

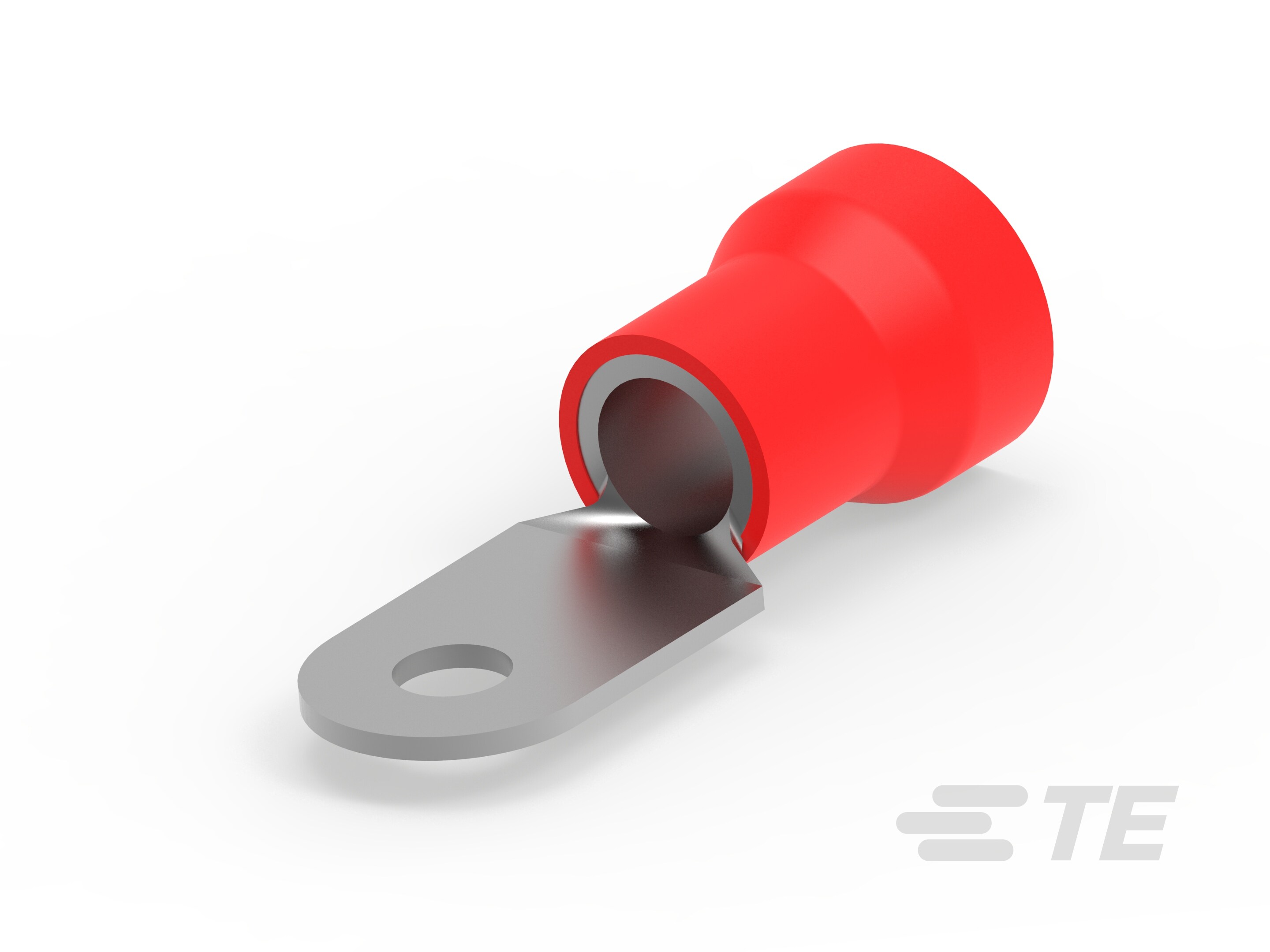

Closed Ring Tongue Terminal, 2 AWG, 1/4 / M6 Stud, 6.35 mm [.25 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification52267
ColorRed
Contact FinishTin
Contact MaterialCopper
InsulationInsulated
Length - Overall2.071 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.25 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.057 in
Width - Outer Edges0.675 in
Wire Gauge2 AWG
