2081554-1
ActiveTE Connectivity AMP Connectors

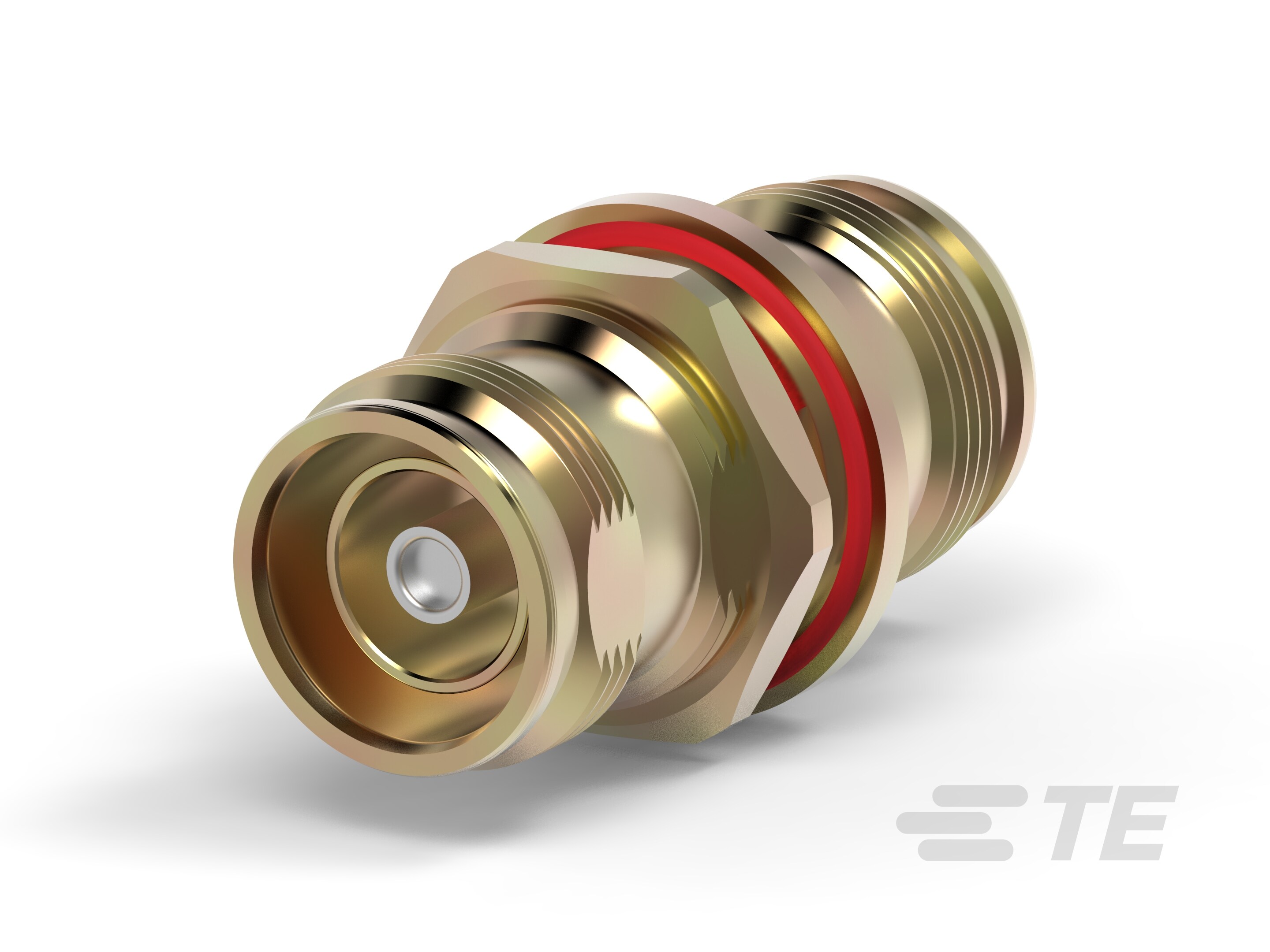

ADAPTER 4.3-10 FEMALE TO 4.3-10 FEMALE
2081554-1
ActiveTE Connectivity AMP Connectors
ADAPTER 4.3-10 FEMALE TO 4.3-10 FEMALE
Description
General part information
2081554-1
In-Series Adapter, Straight, 4.3/10Series Side A, Jack Side A, 4.3/10Series Side B, Jack Side B, 1 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 2081554-1 |
|---|---|
| Adapter Series | 4.3/10 to 4.3/10 |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Silver |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, 4.3, 10 Jack |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 4.3/10 Jack |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
