R1/4-20X3/4 2701

Active

APM HEXSEAL

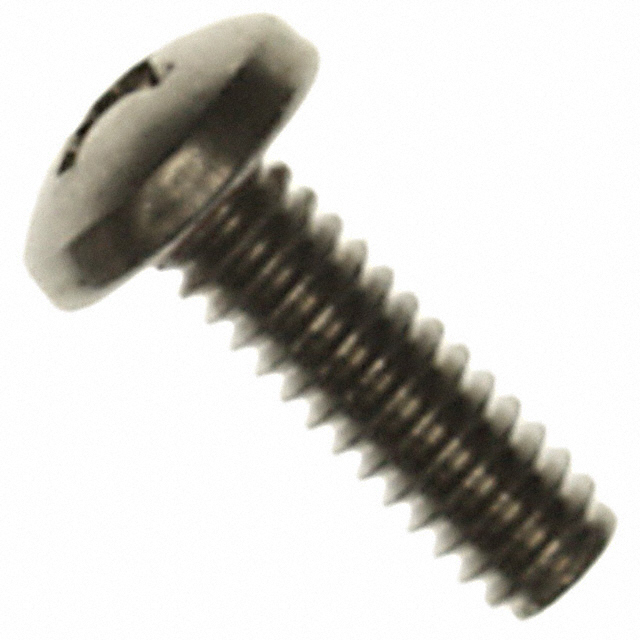

MACH SCREW PAN PHILLIPS 1/4"-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R1/4-20X3/4 2701

Active

APM HEXSEAL

MACH SCREW PAN PHILLIPS 1/4"-20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.61
		5	$ 1.34
		10	$ 1.20
		25	$ 1.07
		50	$ 0.96
		100	$ 0.94
		250	$ 0.91
		500	$ 0.88
		1000	$ 0.80

Description

General part information

R1/4-20 Series

1/4"-20 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R1/4-20X3/4 2701	R1/4-20 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	0.517 in	0.517 in
Head Diameter [diameter]	13.13 mm	13.13 mm
Head Height	4.45 mm	4.45 mm
Head Height	0.175 in	0.175 in
Length - Below Head	0.75 "	0.5625 - 31.75 mm
Length - Below Head	19.05 mm	0.375 - 25.4 mm
Length - Below Head	0.75 "	0.375 - 1.25 "
Length - Below Head	-	7/16, 1/2
Length - Below Head	-	0.875 in
Length - Overall	-	26.67 mm
Length - Overall [x]	23.5 mm	13.97 - 36.2 mm
Length - Overall [x]	0.925 "	0.55 - 1.425 in
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	1/4"-20	1/4"-20
Type	Machine Screw	Machine Screw

R1/4-20 Series

MACH SCREW PAN PHILLIPS 1/4"-20

Part	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Type	Length - Overall [x]	Length - Overall [x]	Features	Length - Below Head	Length - Below Head	Length - Below Head	Thread Size	Drive Type	Screw Head Type	Material	Length - Below Head	Length - Below Head [x]	Length - Overall
APM HEXSEAL R1/4-20X7/16 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	0.613 in	15.57 mm	Self Sealing	7/16	0.438 "	11.13 mm	1/4"-20	Phillips	Pan Head	Stainless Steel
APM HEXSEAL R1/4-20X7/8 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	1.05 in		Self Sealing			0.875 in	1/4"-20	Phillips	Pan Head	Stainless Steel	22.23 mm	0.875 in	26.67 mm
APM HEXSEAL R1/4-20X1/2 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	0.675 "	17.15 mm	Self Sealing	1/2	0.5 in	12.7 mm	1/4"-20	Phillips	Pan Head	Stainless Steel
APM HEXSEAL R1/4-20X1-1/4 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	1.425 in	36.2 mm	Self Sealing		1.25 in		1/4"-20	Phillips	Pan Head	Stainless Steel	31.75 mm
APM HEXSEAL R1/4-20X1 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	1.175 in	29.85 mm	Self Sealing		1 in	25.4 mm	1/4"-20	Phillips	Pan Head	Stainless Steel
APM HEXSEAL R1/4-20X5/8 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	0.8 in	20.32 mm	Self Sealing		0.625 in	15.88 mm	1/4"-20	Phillips	Pan Head	Stainless Steel	0.625 in
APM HEXSEAL R1/4-20X3/8 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	0.55 "	13.97 mm	Self Sealing		0.375 "	0.375 "	1/4"-20	Phillips	Pan Head	Stainless Steel	9.53 mm
APM HEXSEAL R1/4-20X3/4 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	0.925 "	23.5 mm	Self Sealing		0.75 "	19.05 mm	1/4"-20	Phillips	Pan Head	Stainless Steel	0.75 "
APM HEXSEAL R1/4-20X9/16 2701	4.45 mm	0.175 in	0.517 in	13.13 mm	Machine Screw	1.05 in		Self Sealing		0.563 in	14.3 mm	1/4"-20	Phillips	Pan Head	Stainless Steel	0.5625 in		26.67 mm
