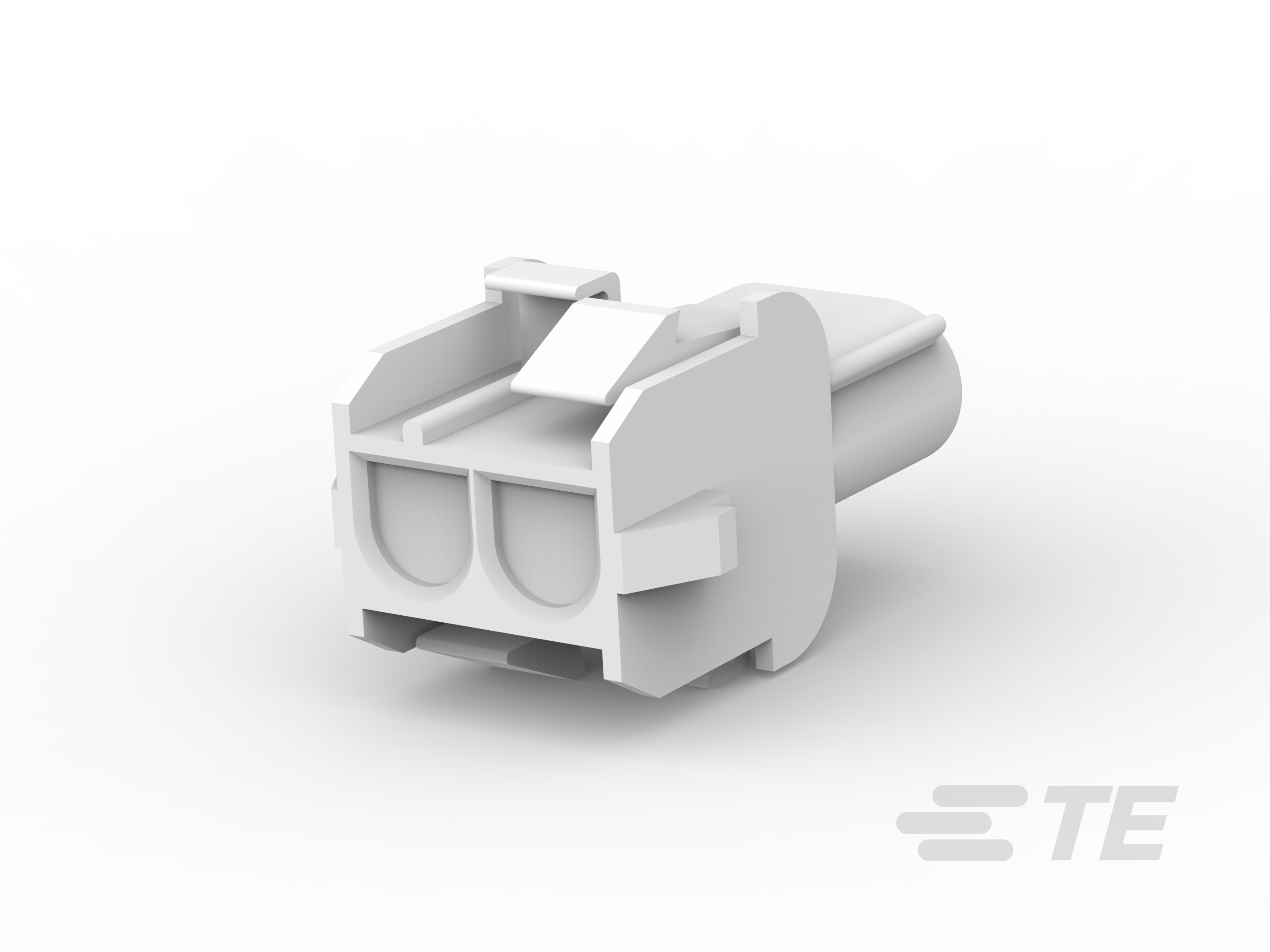

Specification	1-1703062-2

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

Universal MATE-N-LOK Series

...

Part	Contact Termination	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish Thickness	Pin or Socket	For Use With/Related Products	Accessory Type	Number of Positions	Insulation Height	Material Flammability Rating	Number of Rows	Fastening Type	Contact Length - Post	Style	Number of Positions Loaded	Connector Type	Pitch - Mating	Mounting Type	Termination	Insulation Color	Contact Finish - Mating	Contact Finish - Post	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Row Spacing - Mating	Contact Shape	Insulation Material	Contact Material	Row Spacing	Color	Voltage Rating	Current Rating	Shrouding	Features	Applications	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 350687-7	Crimp	Gold	14 AWG	20.5 AWG	30 µin	Split Pin
TE Connectivity AMP Connectors 643030-2							Universal MATE-N-LOK II Series	Strain Relief	5
TE Connectivity AMP Connectors 365046-1									9	0.571 in	UL94 V-2	3	Locking Ramp	0.161 in	Board Cable/Wire	All	Header	0.24 in	Through Hole	Solder	Natural	Tin	Tin	Female Socket	-55 °C	105 °C	0.24 in	Circular	Nylon 6/6 Polyamide (PA66)	Copper Alloy
TE Connectivity AMP Connectors 794280-1
TE Connectivity AMP Connectors 1-480708-4	Crimp								12			3	Latch Lock				Plug		Free Hanging (In-Line)					Female Male Male or Female	-55 °C	105 °C			Nylon Polyamide (PA)		0.25 in	Yellow
TE Connectivity AMP Connectors 1969811-1									6	0.55 in	UL94 V-0	2	Locking Ramp	0.185 in	Board	All	Receptacle	0.25 in	Through Hole	Solder	Natural	Tin	Tin	Female Socket	-40 °C	105 °C	0.25 in						600 V	12 A
TE Connectivity AMP Connectors 794992-1							Universal MATE-N-LOK Series	Gasket	3
TE Connectivity AMP Connectors 1-350949-0									5	0.36 in	UL94 V-2	1	Locking Ramp	0.16 in	Board Cable/Wire	All	Header	0.25 in	Right Angle Through Hole	Solder	White	Tin	Tin	Male Pin	-40 °C	105 °C		Circular	Nylon Polyamide (PA)	Phosphor Bronze			600 V	12 A	Shrouded - 4 Wall	Mounting Flange	General Purpose
TE Connectivity AMP Connectors 794876-1									2	0.55 in	UL94 V-0	1	Locking Ramp	0.155 in	Board Cable/Wire	All	Header	0.25 in	Through Hole	Solder	White	Tin	Tin	Male Pin	-40 °C	105 °C		Circular	Nylon Polyamide (PA)	Phosphor Bronze			600 V	12 A	Shrouded - 4 Wall	Board Guide
TE Connectivity AMP Connectors 350760-5									3	0.55 in	UL94 V-2	1	Locking Ramp	0.155 in	Board Cable/Wire	All	Header	0.25 in	Through Hole	Solder	Natural	Gold	Tin	Female Socket														30 µin
