HG4964-16S-65
ActivePasternack
4.9-6.4GHZ, 2-PORT, SLANT POLARI
HG4964-16S-65
ActivePasternack
4.9-6.4GHZ, 2-PORT, SLANT POLARI
Description
General part information
HG4964-16S-65

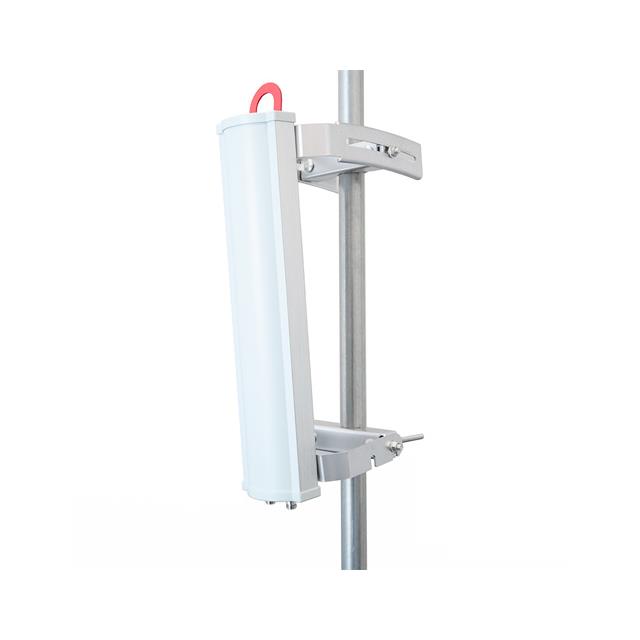

RF ANTENNA 802.11n, UNII, WiMax Sector N Type Female Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG4964-16S-65 |
|---|---|
| Antenna Type | Sector |
| Applications | WiMax, 802.11N, UNII |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 5.65GHz, 6.15GHz, 5.15GHz |
| Frequency (Center/Band) - 1 | 5.15 GHz |
| Frequency (Center/Band) - 2 | 5.65 GHz |
| Frequency (Center/Band) - 3 | 6.15 GHz |
| Frequency (Center/Band) Maximum | 6.15 GHz |
| Frequency (Center/Band) Minimum | 5.15 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 5.4 GHz |
| Frequency Range (Band 1) Minimum | 4.9 GHz |
| Frequency Range (Band 2) Maximum | 5.9 GHz |
| Frequency Range (Band 2) Minimum | 5.4 GHz |
| Frequency Range (Band 3) Maximum | 6.4 GHz |
| Frequency Range (Band 3) Minimum | 5.9 GHz |
| Gain | 16 dBi, 17.5 dBi, 17 dBi |
| Height (Max) | 2.69 in |
| Mounting Type | Mast Mount |
| Number of Bands | 3 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, Cellular |
| Termination | N Type Female |
| VSWR | 1.7, 2 |
| VSWR Maximum | 2 |
| VSWR Minimum | 1.7 |
