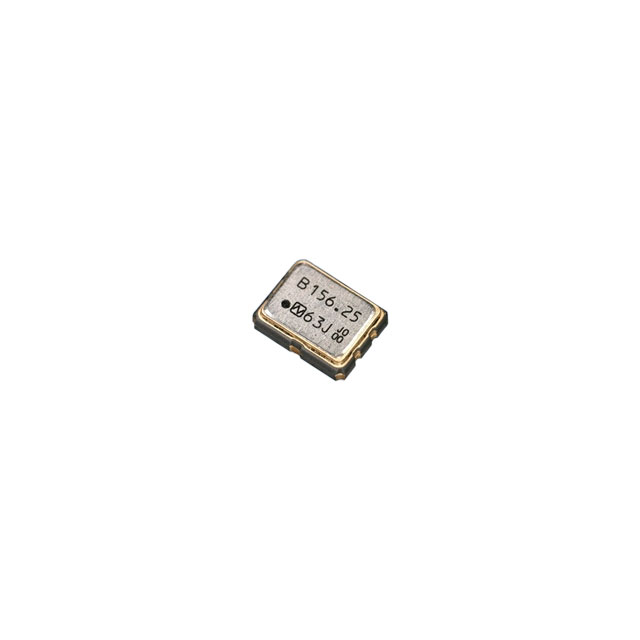

NSC5344B-156.25M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
OSC XO 156.25MHZ LVDS 3.3V SMD
NSC5344B-156.25M
ActiveNDK (NIHON DEMPA KOGYO CO., LTD)
OSC XO 156.25MHZ LVDS 3.3V SMD
Description
General part information
NSC5344B-156.25M
156.25 MHz XO (Standard) LVDS Oscillator 3.3V Standby (Power Down) 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | NSC5344B-156.25M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 µA |
| Current - Supply (Max) | 40 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 50 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
