2480661-8
ActiveTE Connectivity AMP Connectors

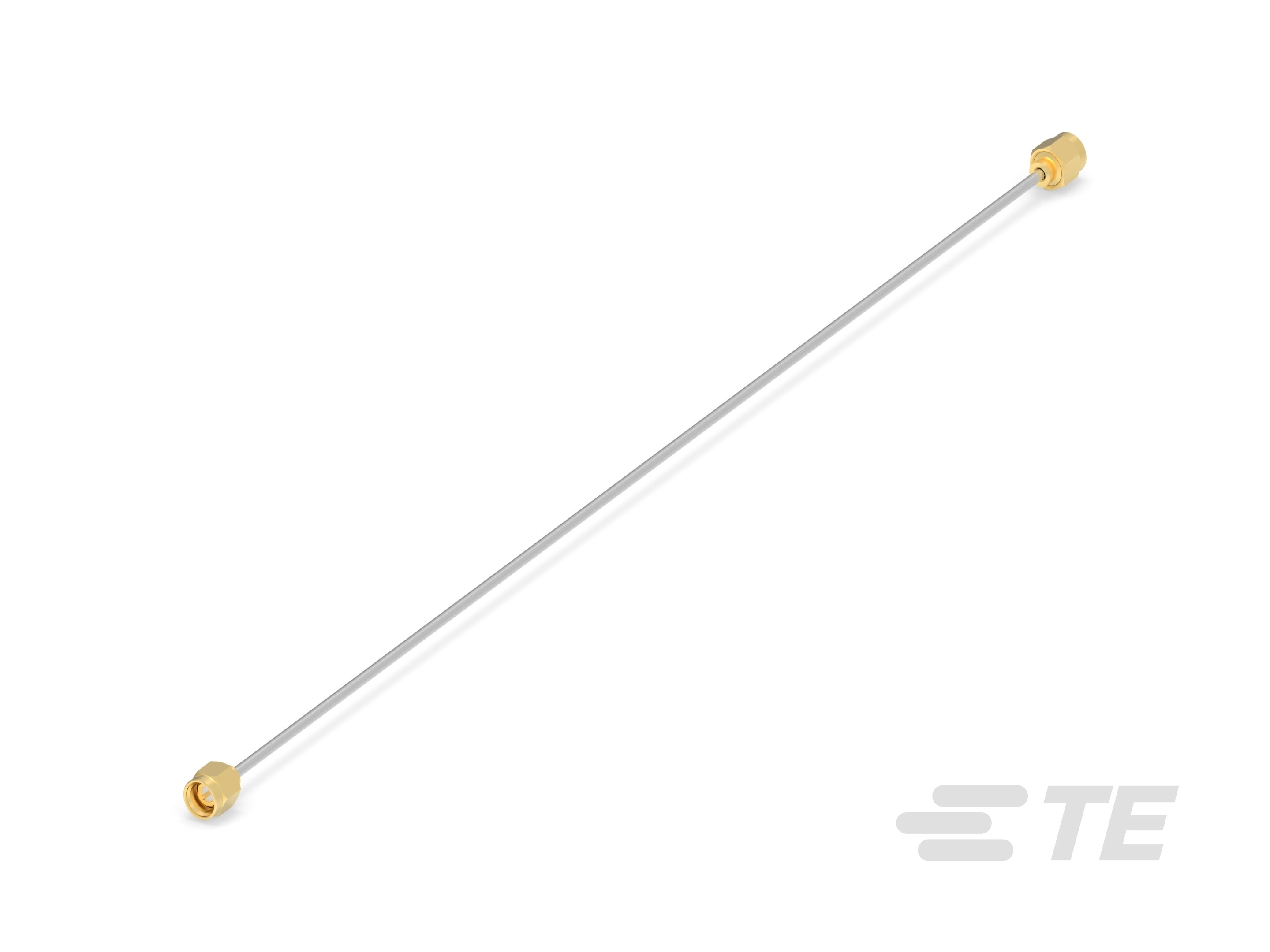

SMA M TO SMA M STR HAND FORMABLE.086 18"
2480661-8
ActiveTE Connectivity AMP Connectors
SMA M TO SMA M STR HAND FORMABLE.086 18"
Description
General part information
2480661-8
SMA Cable Assembly, .457 m [1.49 ft], None Cable, 0 – 18 GHz, 50 ohm, 18 AWG, 2.16 mm [.085 in] Diameter, SMA Plug End A, SMA Plug End B
Technical Specifications
Parameters and characteristics for this part
| Specification | 2480661-8 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable |
| Cable Type Size | 0.086 |
| Color | Silver |
| Frequency - Max | 18 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
