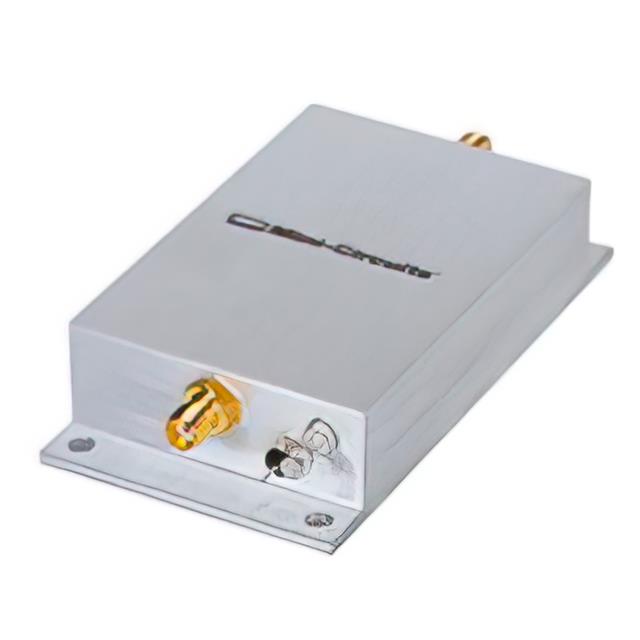

ZRL-700+
ActiveMini-Circuits
LNA, 250 - 700 MHZ, 50 OHM
ZRL-700+
ActiveMini-Circuits
LNA, 250 - 700 MHZ, 50 OHM
Description
General part information
ZRL-700+
RF Amplifier IC UHF 250MHz ~ 700MHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ZRL-700+ |
|---|---|
| Current - Supply | 575 mA |
| Frequency (Max) | 700 MHz |
| Frequency (Min) | 250 MHz |
| Gain | 30 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2 dB |
| P1dB | 23.5 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | UHF |
| Test Frequency (Maximum) | 700 MHz |
| Test Frequency (Minimum) | 250 MHz |
| Voltage - Supply | 12 VDC |
