Description
General part information
XXS30S4VM12

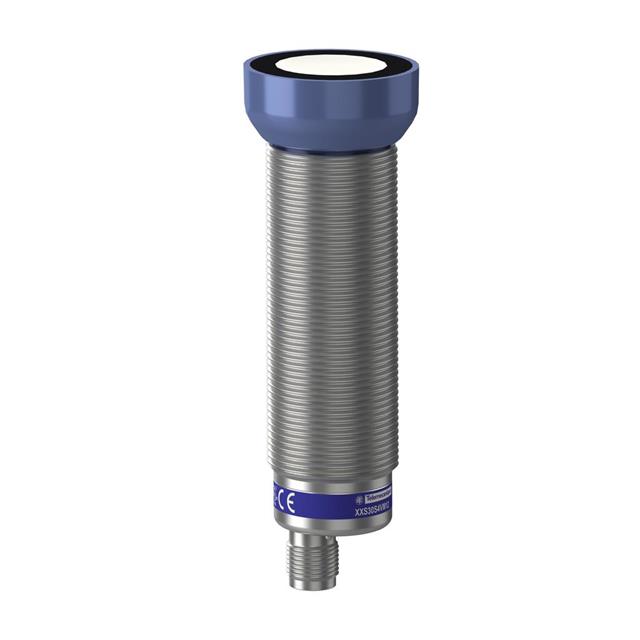

Ultrasonic Proximity Sensor 157.480" (4m) IP65, IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XXS30S4VM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 157.48 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply | 24 VDC |
