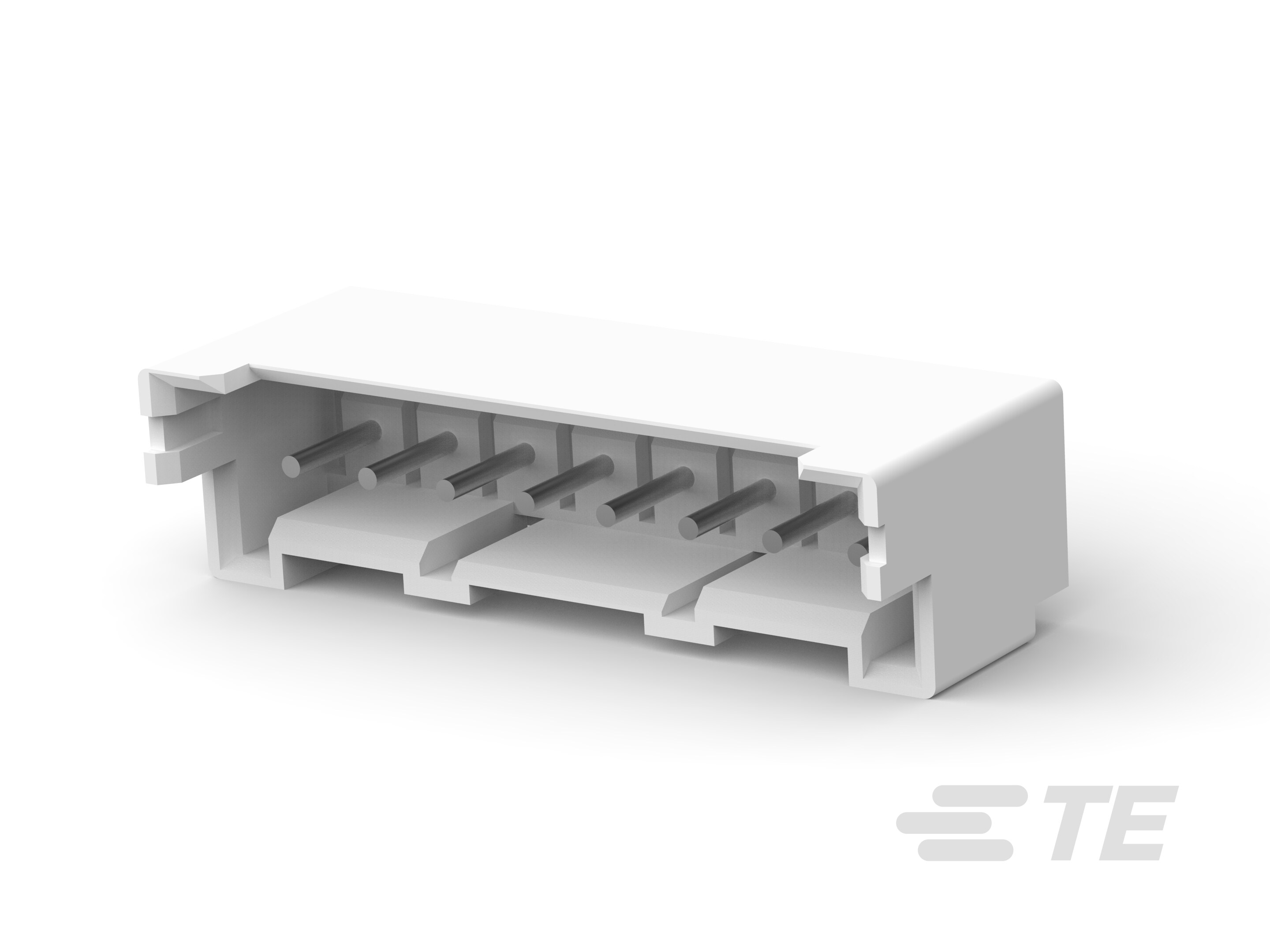

EP2.5 Shrouded HDR ASSY 8P VERT w/o boss-2132415-8

2132415-8

NRND
TE Connectivity AMP Connectors

EP2.5 SHROUDED HDR ASSY 8P VERT W/O BOSS

Find alt
EP2.5 Shrouded HDR ASSY 8P VERT w/o boss-2132415-8

2132415-8

NRND
TE Connectivity AMP Connectors

EP2.5 SHROUDED HDR ASSY 8P VERT W/O BOSS

Find alt

Description

General part information

2132415-8

PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Economy Power 2.5

Technical Specifications

Parameters and characteristics for this part

Specification2132415-8
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating80 µin
Contact Length - Mating0.141 in
Contact Length - Post0.134 in
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Current Rating4.2 A
Fastening TypeFriction Lock
Insulation ColorNatural
Insulation Height0.346 in
Insulation MaterialPolyamide (PA66), Nylon 6/6
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions8
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationKinked Pin, Solder
Voltage Rating250 V
