Description
General part information
MSA544R7M0S001

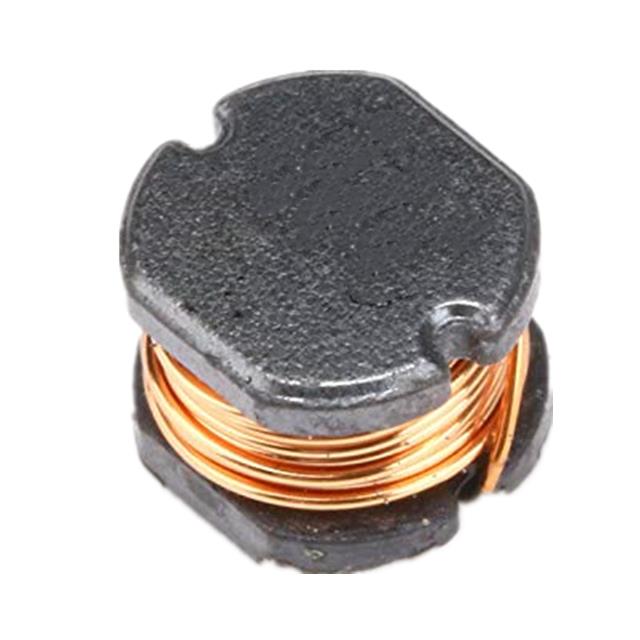

4.7 µH Unshielded Drum Core, Wirewound Inductor 38mOhm Max 2-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | MSA544R7M0S001 |
|---|---|
| Current - Saturation (Isat) | 3.5 A |
| DC Resistance (DCR) (Max) | 38 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD |
| Package Name | 2-SMD |
| Shielding | Unshielded |
| Size / Dimension Length | 0.228 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
