LCCA30383-FT5
ActivePasternack

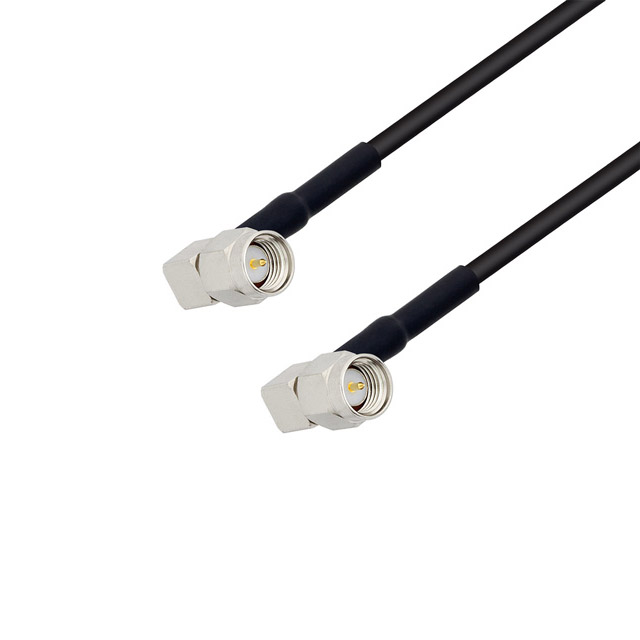

SMA MALE RIGHT ANGLE TO SMA MALE
LCCA30383-FT5
ActivePasternack
SMA MALE RIGHT ANGLE TO SMA MALE
Description
General part information
LCCA30383-FT5
Cable Assembly Coaxial SMA to SMA CA-100 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30383-FT5 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | CA, 100 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
