Description
General part information

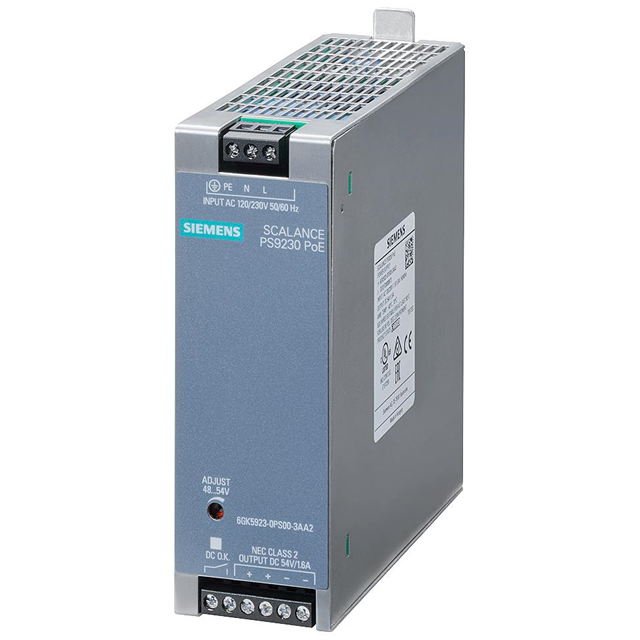

6GK59230PS003AA2
AC/DC DIN RAIL SUPPLY 54V 86W
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK59230PS003AA2 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, UL, CSA, cULus |
| Current - Output (Max) | 1.6 A |
| Efficiency | 89 % |
| Features | IP20, Adjustable Output |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 86 W |
| Size / Dimension Height | 4.92 in |
| Size / Dimension Length | 4.92 in |
| Size / Dimension Width | 1.65 in |
| Standard Number | 60950-1, UL 508 |
| Voltage - Output 1 | 54 V |
