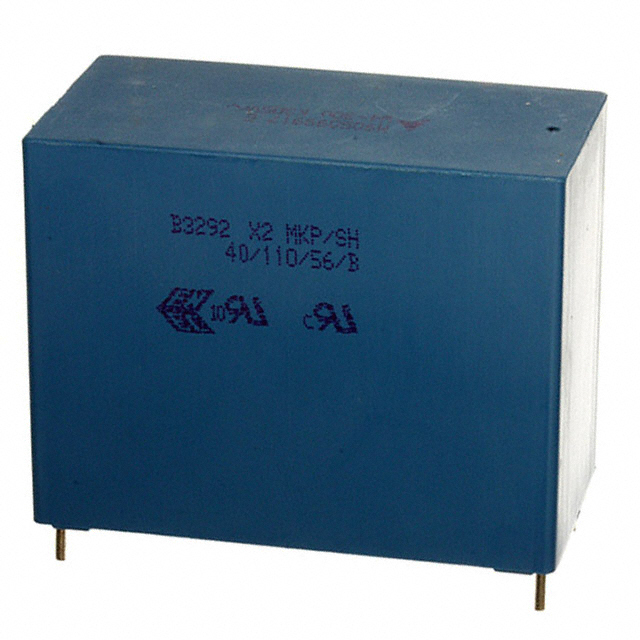

B32928E3306K
ObsoleteEPCOS - TDK Electronics
CAP FILM 30UF 10% 630VDC RADIAL
B32928E3306K
ObsoleteEPCOS - TDK Electronics
CAP FILM 30UF 10% 630VDC RADIAL
Description
General part information
B32928E3306K
30 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32928E3306K |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 30 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 1.772 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.181 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 630 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
