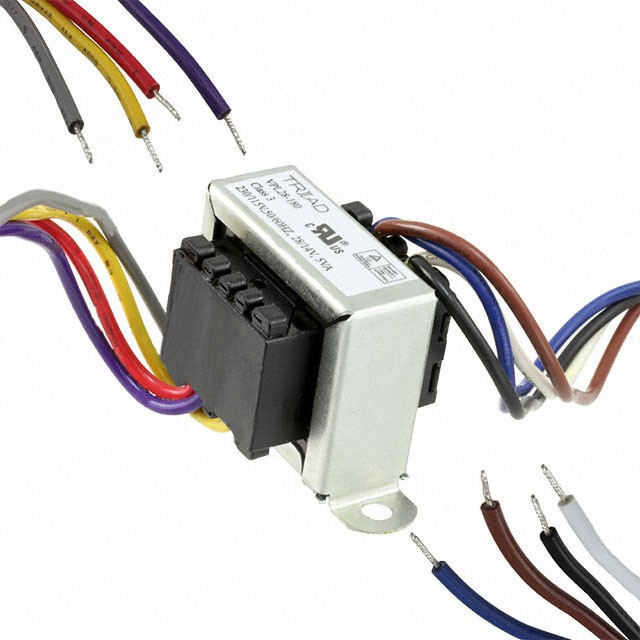

VPL28-180
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 14V, 5 VA, 50HZ / 60HZ
VPL28-180
ActiveTriad Magnetics
CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 14V, 5 VA, 50HZ / 60HZ
Description
General part information
VPL28-180
CHASSIS MOUNT TRANSFORMER, WORLD SERIES, SPLIT BOBBIN, 115V, 230V, 2 X 14V, 5 VA, 50HZ / 60HZ
Technical Specifications
Parameters and characteristics for this part
| Specification | VPL28-180 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 180 mA |
| Height - Seated (Max) | 36.52 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 5 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 36.52 mm |
| Size / Dimension Width | 60.33 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 3500 Vrms |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | 28 V |
| Weight | 0.4 lb |
