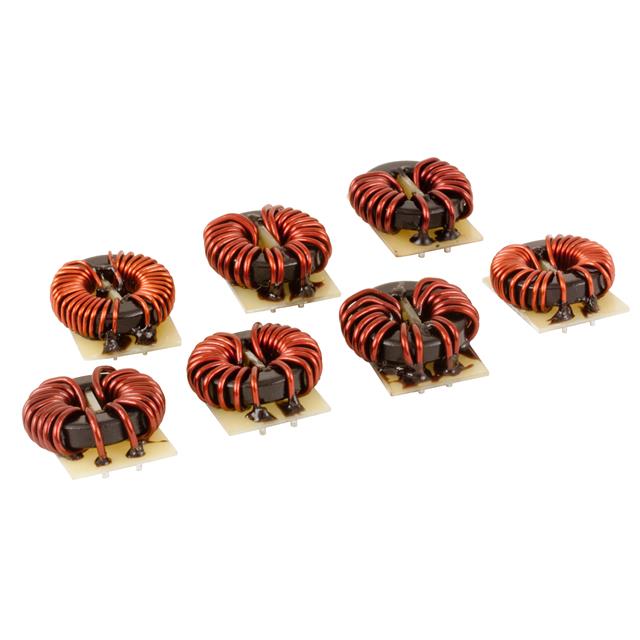

CMX1616Z112B-10
ActiveLaird Technologies EMI
CMC 1MH 30A 2LN TH
CMX1616Z112B-10
ActiveLaird Technologies EMI
CMC 1MH 30A 2LN TH
Description
General part information
CMX1616Z112B-10
1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 30A DCR 2.8mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CMX1616Z112B-10 |
|---|---|
| Current Rating (Max) | 30 A |
| DC Resistance (DCR) (Max) | 2.8 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.65 in |
| Inductance | 1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.575 in |
| Size / Dimension Width | 1.575 in |
| Voltage Rating - AC | 250 V |
