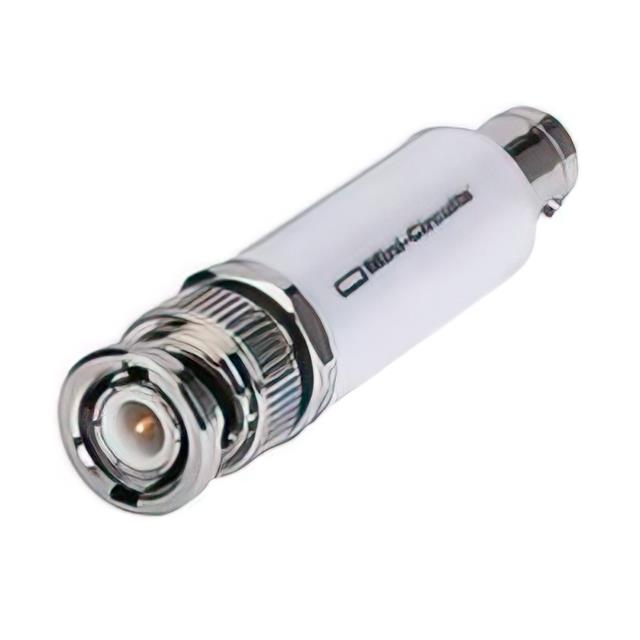

BBP-70+
ActiveMini-Circuits
RF FILTER BAND PASS 70MHZ BNC
BBP-70+
ActiveMini-Circuits
RF FILTER BAND PASS 70MHZ BNC
Description
General part information
BBP-70+
70MHz Center Frequency Band Pass RF Filter (Radio Frequency) 14MHz Bandwidth 1.5dB BNC In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | BBP-70+ |
|---|---|
| Bandwidth | 14 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 70 MHz |
| Insertion Loss | 1.5 dB |
| Mounting Type | Chassis Mount |
| Package / Case | BNC In-Line Module |
| Size / Dimension Diameter | 0.57 in |
| Size / Dimension Length | 0.57 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
