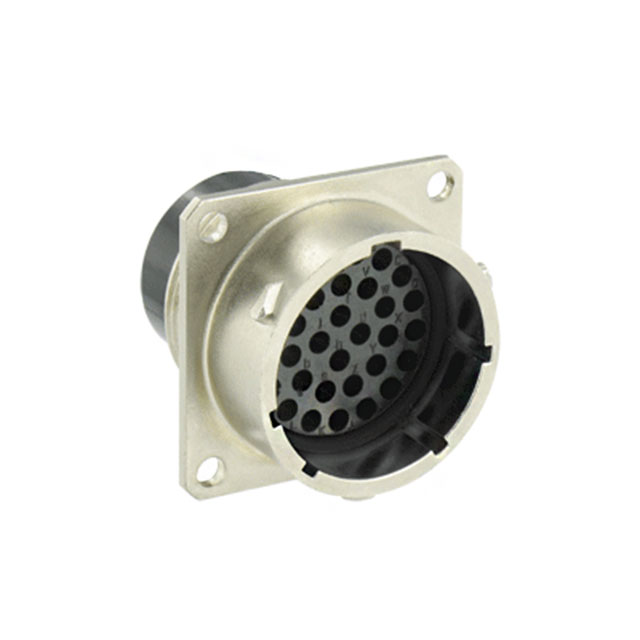

Specification	UT0W01832PH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	32
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert (Maximum)	32
Shell Size - Insert (Minimum)	18
Shielding	Shielded
Type	For Male Pins

UT0W0 Series

Part	Housing Color	Material Flammability Rating	Shell Material	Insert Material	Mounting Feature	Fastening Type	Connector Type	Contact Size	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Number of Positions	Shell Finish	Contact Shape	Orientation	Mounting Type	Contact Type	Note	Type	Ingress Protection IP Rating	Ingress Protection Description	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
Amphenol Aerospace Operations UT0W02041SH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	41	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	41	20
Amphenol Aerospace Operations UT0W02041SH6	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	41	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Female Sockets	IP68 IP69K	Dust Tight Water Resistant Waterproof	41	20
Amphenol Aerospace Operations UT0W02041PH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	41	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	41	20
Amphenol Aerospace Operations UT0W01626PH6	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	26	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Male Pins	IP68 IP69K	Dust Tight Water Resistant Waterproof	26	16 S
Amphenol Aerospace Operations UT0W01832SH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	32	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	32	18
Amphenol Aerospace Operations UT0W02255SH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	55	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	55	22
Amphenol Aerospace Operations UT0W01419PH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	19	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	19	14 S
Amphenol Aerospace Operations UT0W01832PWH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	32	Nickel	Circular	W	Panel Mount	Crimp	Contacts Not Included	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	32	18
Amphenol Aerospace Operations UT0W02255PH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	55	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Male Pins	IP67 IP69K	Dust Tight Water Resistant Waterproof	55	22
Amphenol Aerospace Operations UT0W01626SH	Silver	UL94 V-0	Zinc Alloy	Glass Filled Thermoplastic	Flange	Bayonet Lock	Receptacle Housing	20	-40 °C	105 °C	Shielded	26	Nickel	Circular	N (Normal)	Panel Mount	Crimp	Contacts Not Included	For Female Sockets	IP67 IP69K	Dust Tight Water Resistant Waterproof	26	16 S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UT0W01832PH | Datasheet
