GMCT41F0E0000/AA

GMCT41F0E0000/AA

Active
McGill Microwave Systems

RECT PWR HOUSING, RCPT, DAP ROHS COMPLIANT: YES

Find alt
GMCT41F0E0000/AA

GMCT41F0E0000/AA

Active
McGill Microwave Systems

RECT PWR HOUSING, RCPT, DAP ROHS COMPLIANT: YES

Find alt

Description

General part information

GMCT41F0E0000/AA

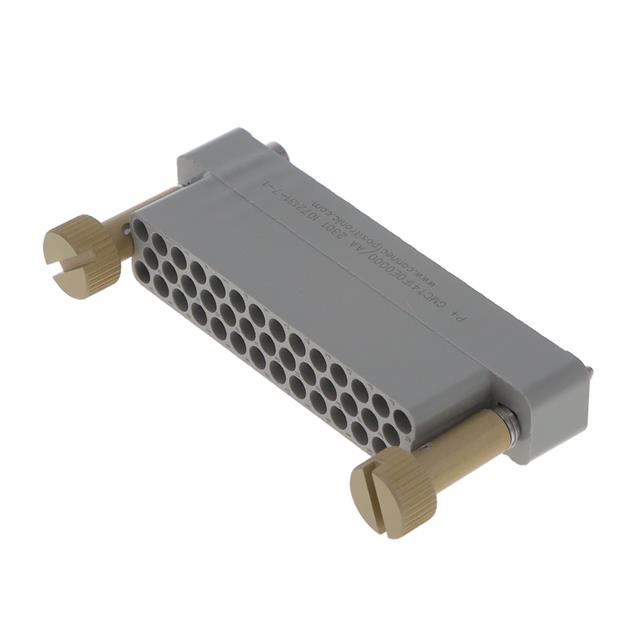

41 Rectangular Connectors - Housings Receptacle Gray 0.150" (3.81mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationGMCT41F0E0000/AA
ColorGray
Connector StyleBackplane
Connector TypeReceptacle, Housing for Female Contacts
Connector UsageReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
FeaturesJackscrews, Jackscrew
Insulation MaterialDiallyl Phthalate (DAP), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions41
Number of Rows3
Operating Temperature (Max)150 °C
Operating Temperature (Min)-65 °C
Pitch0.15 in
