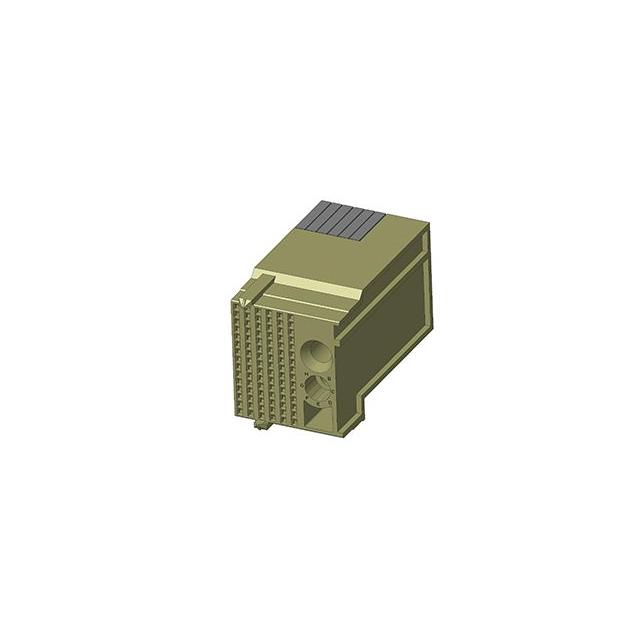

10135307-10JLF

Active

Amphenol ICC (FCI)

AIRMAX VS2 RAR 5X6 RG

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

AIRMAX VS2 RAR 5X6 RG

Technical Specifications

Parameters and characteristics for this part

Specification	10135307-10JLF

Color	Natural
Connector Style	Guide Left, Airmax VS2™
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Pitch [x]	Pitch [x]	Color	Contact Finish	Connector Style	Number of Positions	Mounting Type	Number of Columns	Voltage Rating	Connector Usage	Number of Rows	Contact Layout, Typical	Features
Amphenol ICC (FCI) 10135307-10JLF	85 °C	-55 °C	Receptacle Female Sockets	Press-Fit	UL94 V-0	All	500 mA	0.079 in	2 mm	Natural	Gold	Airmax VS2™ Guide Left	90	Board Edge Right Angle Through Hole	6	30 VAC	Backplane	15
Amphenol ICC (FCI) 10135307-10ALF			Receptacle Female Sockets	Press-Fit	UL94 V-0	All	0.5 A	0.079 in	2 mm	Natural	Gold	Airmax VS2™ Guide Left	90	Board Edge Right Angle Through Hole	6		Daughtercard	15	30 Differential Pairs	Polarizing Key
Amphenol ICC (FCI) 10135307-10PLF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 71.48

General part information

90 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural Airmax VS2™, Guide Left
