Description
General part information

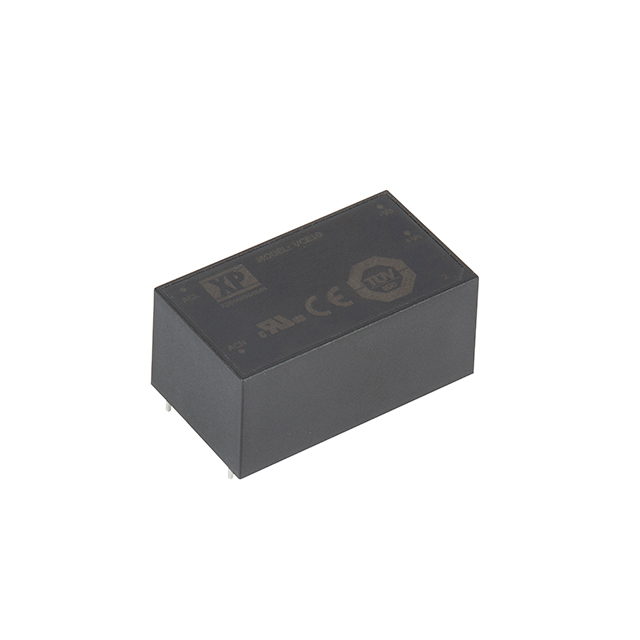

VCE10US03
Enclosed AC DC Converters 1 Output 3.3V 2.4A 85 ~ 305 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VCE10US03 |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | CB, TUV, UL |
| Current - Output (Max) | 2.4 A |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 7.9 W |
| Size / Dimension Height | 0.91 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1.15 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 3.3 V |
