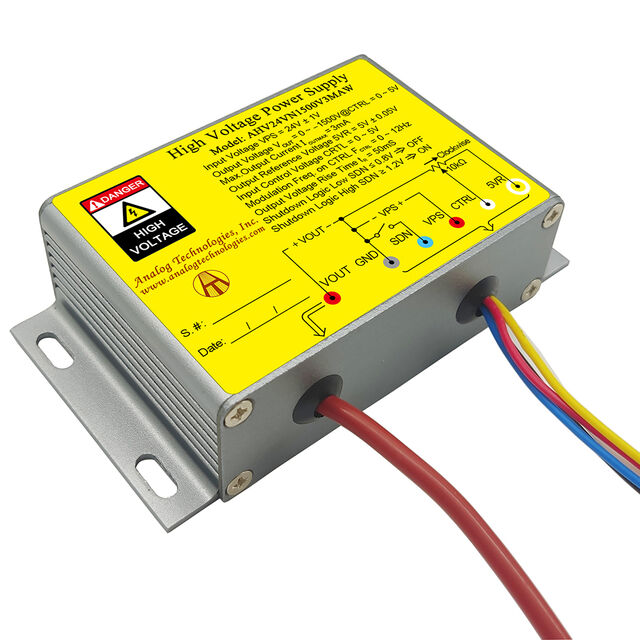

AHV24VN1500V3MAW
ActiveAnalog Technologies, Inc.
HV 24V TO -1500V 4.5W DC-DC CONV
AHV24VN1500V3MAW
ActiveAnalog Technologies, Inc.
HV 24V TO -1500V 4.5W DC-DC CONV
Description
General part information
AHV24VN1500V3MAW
Enclosed DC DC Converter 1 Output 0 ~ -1500V 3mA 25V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AHV24VN1500V3MAW |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 3 mA |
| Efficiency | 70 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 4.5 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 4.11 in |
| Size / Dimension Width | 2.36 in |
| Type | Enclosed |
| Voltage - Input (Max) | 25 V |
| Voltage - Input (Min) | 23 V |
| Voltage - Output 1 (Max) | 0 V |
| Voltage - Output 1 (Min) | -1500 V |
